Запчасти Case IH QUADTRAC 470 (48.134.AJ[01]) - TRACK ASSY TENSIONER LINES (48) - TRACKS & TRACK SUSPENSION

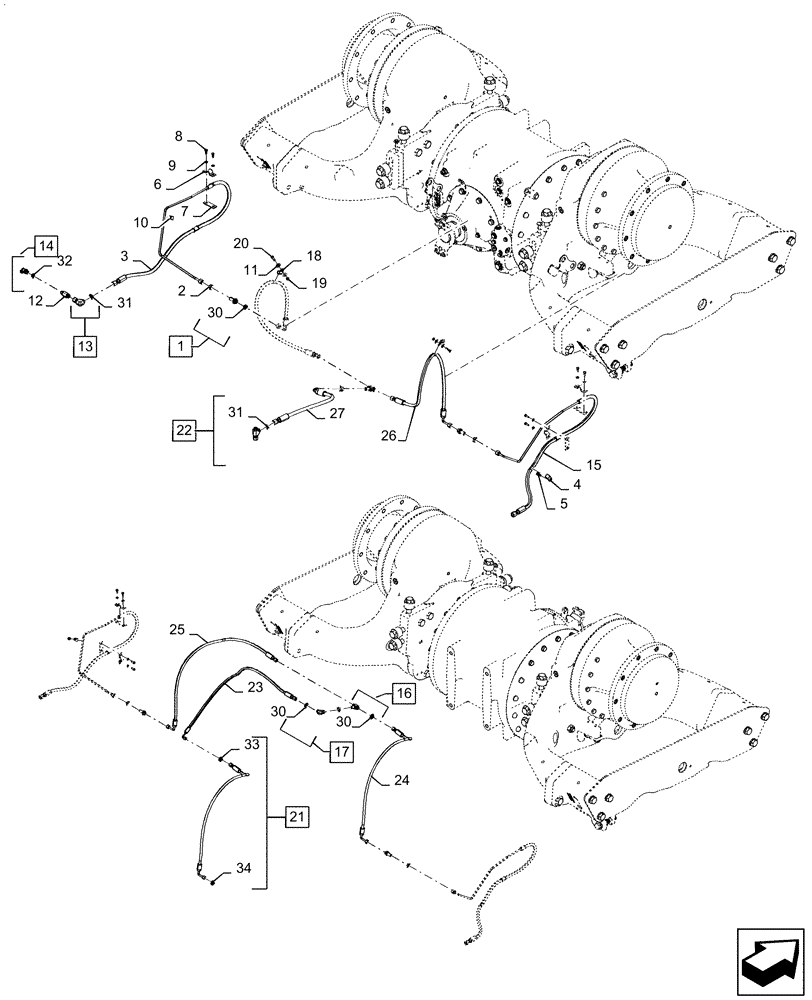

Схема запчастей Case IH QUADTRAC 470 - (48.134.AJ[01]) - TRACK ASSY TENSIONER LINES (48) - TRACKS & TRACK SUSPENSION
1
34
30
18
11
26
16
7
19
31
12
8
5
27
33
10
15
14
13
32
21
25
9
23
20
4
30
30
17
2
3
6
31
22
24

Артикул

Название

Примечание

Количество

1

86978770

UNION,11/16"-6, ORFS

Incl 30

4шт.

2

87010704

BHD LOCK NUT,11/16"-16

6шт.

3

47570372

HYDRAULIC HOSE

Tension Cylinder Outboard, LH

2шт.

4

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

5

87752074

SCREW,HWH, M8 x 1.25 x 16mm

4шт.

6

84547471

BRACKET

Tension Hose

8шт.

7

84547472

BRACKET

Tension Hose

8шт.

8

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

22шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

10

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

8шт.

11

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.

12

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

4шт.

13

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 31

4шт.

14

325647A2

COUPLING

Male Quick Coupler, Incl 32

4шт.

15

47570373

HYDRAULIC HOSE

Tension Cylinder Outboard, RH

2шт.

16

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

Incl 30

2шт.

17

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 30

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

21

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 33 - 34

1шт.

22

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 31

1шт.

23

47571900

HYDRAULIC HOSE

Rear Axle Tension Cylinder Supply, Rear Remote Valves To Rear Axle

1шт.

24

47571899

HYDRAULIC HOSE

Tension Cylinder Short, RH, Rear Axle

1шт.

25

47571901

HYDRAULIC HOSE

Tension Cylinder Long, LH, Rear Axle

1шт.

26

47570371

HYDRAULIC HOSE

Tension Cylinder Short, RH, Front Axle

1шт.

27

84491633

HOSE ASSY.

Front Axle Tension Cylinder Supply

1шт.

29

47570369

HYDRAULIC HOSE

Tension Cylinder Long, LH, Front Axle

1шт.

30

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

15шт.

31

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

32

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

33

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

34

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 33
