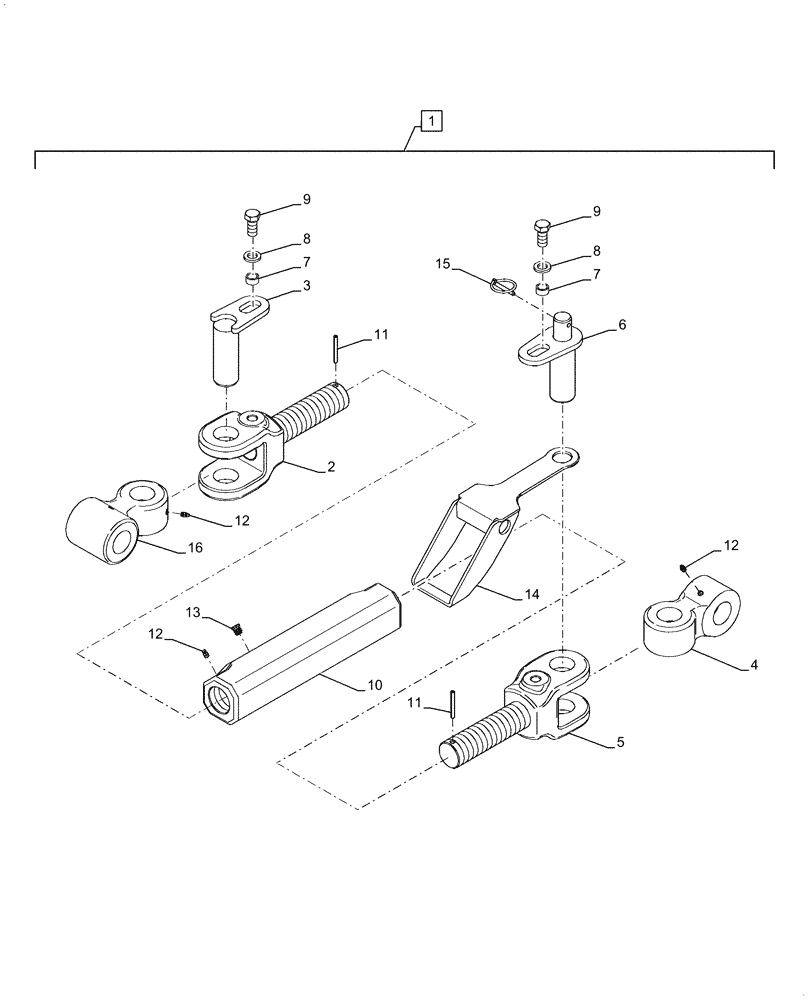

Запчасти Case IH QUADTRAC 470 (37.120.AA) - 3 POINT HITCH UPPER LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84192702

LIFT LINK

Upper, Three Point Hitch, Incl 2 - 16

1шт.

2

403731A1

LINK,2" - 8

RH

1шт.

3

70-6013T2

PIN

RH Knuckle

1шт.

4

403728A1

KNUCKLE

LH

1шт.

5

403733A1

LINK,2" - 8, LH Thd

LH

1шт.

6

84208876

PIN,44.37mm OD x 172mm L

LH Knuckle

1шт.

7

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

16.7mm x 22.2mm x 11.2mm

2шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

9

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

10

84192700

TURNBUCKLE,2" - 8

Link

1шт.

11

838-3655

PIN

Coiled Spring

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

6шт.

13

295004A1

PLUG

Expansion

4шт.

14

344696A2

LATCH

Handle, Lock

1шт.

15

A30338

PIN

Coil

1шт.

16

403726A1

KNUCKLE

RH

1шт.
