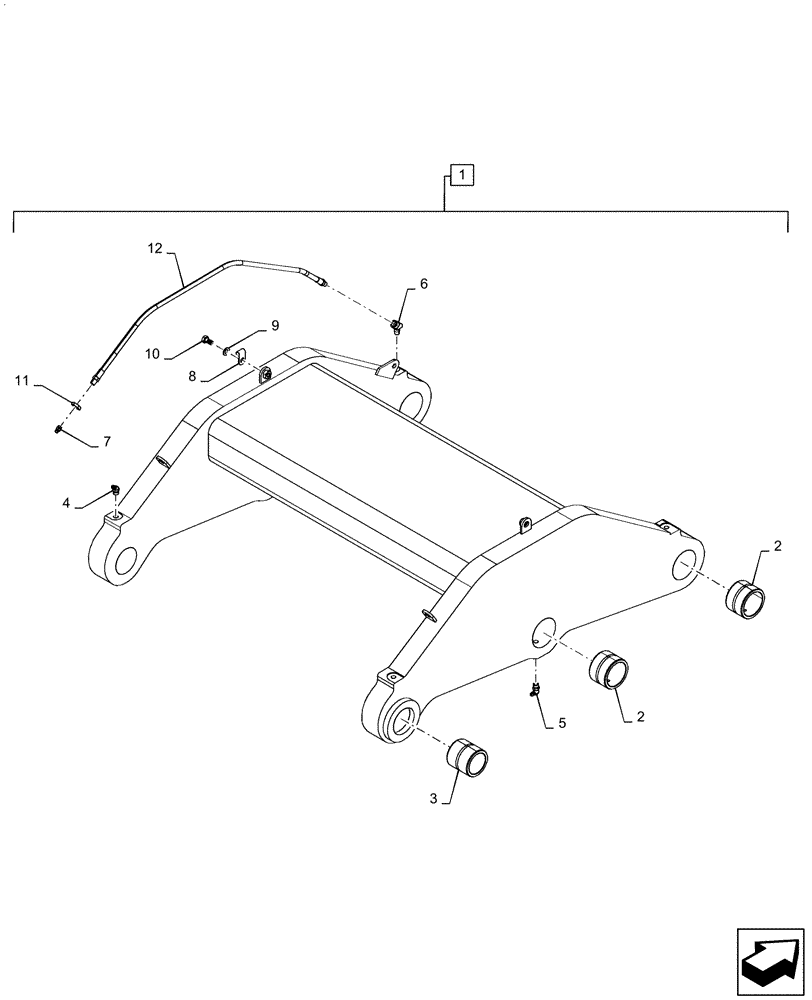

Запчасти Case IH QUADTRAC 470 (37.110.AQ) - ROCKSHAFT ASSY (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84192696

ROCKSHAFT

Assembly, Incl 2 - 12

1шт.

2

435500A1

BUSHING,51.11mm ID x 63.48mm OD x 44.45mm L

51.1mm ID x 63.475mm OD

4шт.

3

328586A2

BUSHING,44.57mm ID x 57.12mm OD x 56.69mm L

44.6mm ID x 57.1mm OD

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

8

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

11

F53473

LOCK NUT,1/8-27 NPSM

1/8 - 27 NPSM

2шт.

12

1339231C1

TUBE,737 mm Length

Grease Line

2шт.
