Запчасти Case IH QUADTRAC 470 (37.100.AF[01]) - TOW CABLE, W/ FRONT BALLAST (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

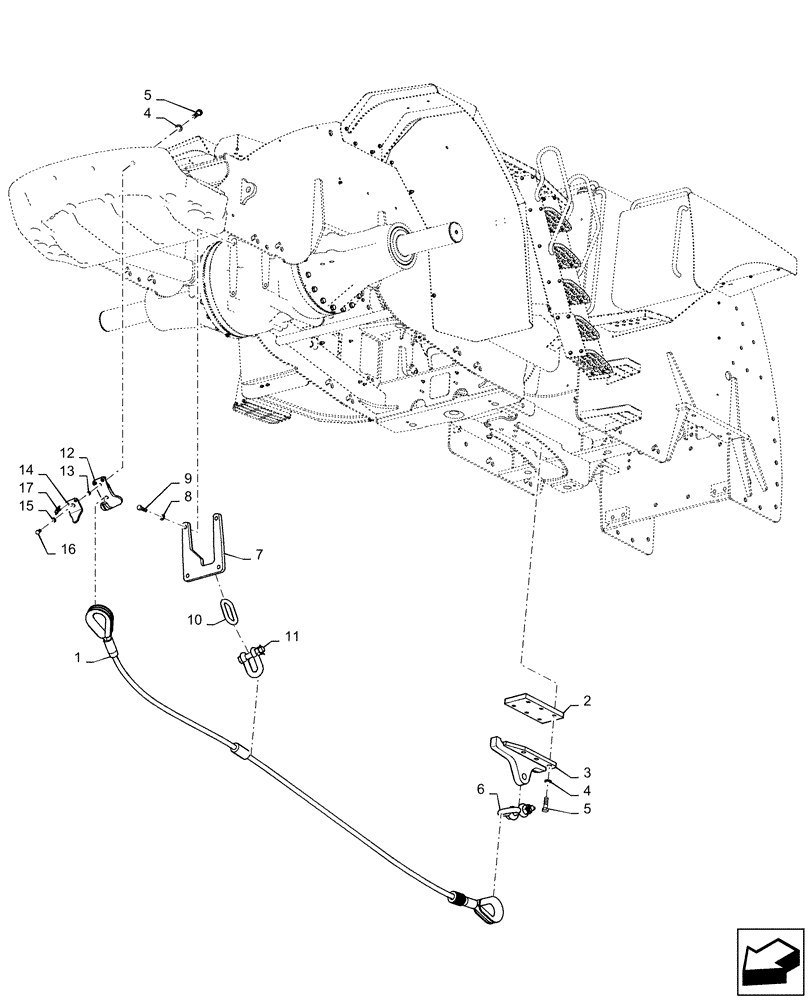

Схема запчастей Case IH QUADTRAC 470 - (37.100.AF[01]) - TOW CABLE, W/ FRONT BALLAST (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
5
6
4
1
2
13
16
14
11
4
5
7
17
12
10
8
9
3
15

Артикул

Название

Примечание

Количество

1

84426519

CABLE ASSY.,4750mm L

Tow Cable

1шт.

2

87548081

MOUNTING PLATE

Tow Cable

1шт.

3

87548080

MOUNTING PLATE

Tow Cable

1шт.

4

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

7шт.

5

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

7шт.

6

87539843

SHACKLE

Anchor

1шт.

7

84593538

MOUNT

Tow Cable, Center

1шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

4шт.

10

409753A1

LINK,196.85mm L

1шт.

11

369838A1

SHACKLE

Tow Cable

1шт.

12

84194283

MOUNT

Front Tow Cable

1шт.

13

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

1шт.

14

84194615

LATCH HOOK

Tow Cable

1шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

16

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

17

19-1041

LOCK PIN,7/16" x 2"

1шт.

Выбрано товаров: 17
