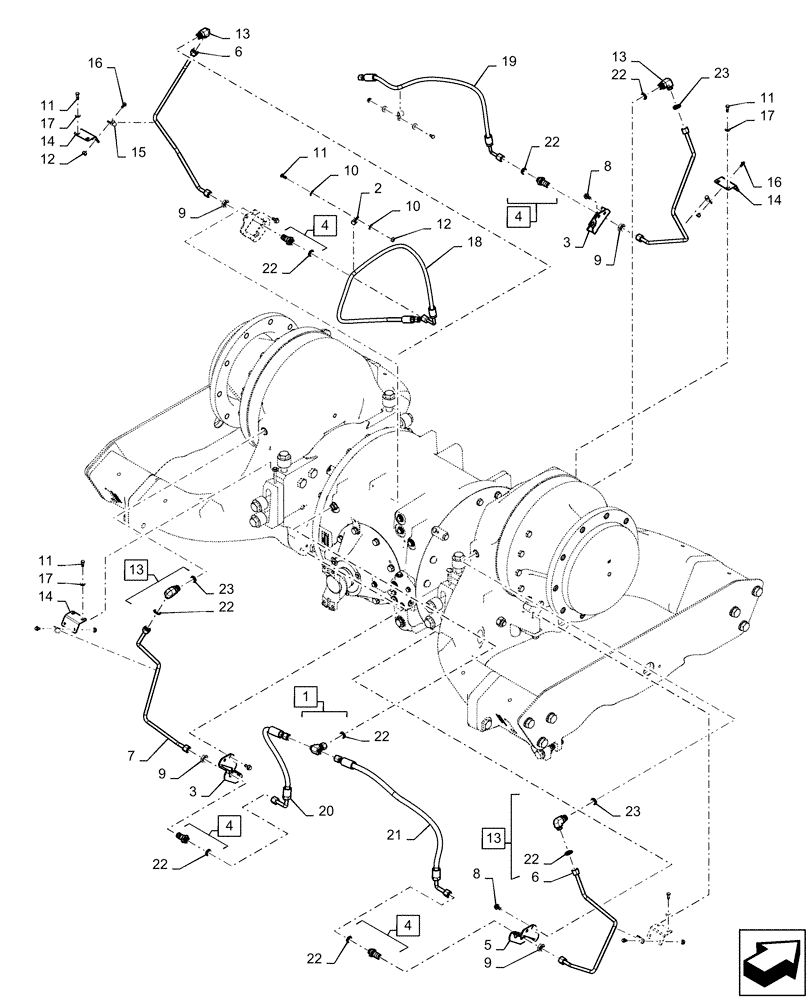

Запчасти Case IH QUADTRAC 470 (35.733.AC[07]) - AXLE INTERNAL LUBRICATION LINE (35) - HYDRAULIC SYSTEMS

1

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 22

2шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

3

47439668

BRACKET

Bulkhead

4шт.

4

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 22

8шт.

5

47439669

BRACKET

Bulkhead

4шт.

6

47455750

HYD TUBE

Upbox Lube

4шт.

7

47455746

HYD TUBE

Upbox Lube

4шт.

8

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

16шт.

9

701-903

NUT,13/16" - 16

8шт.

10

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

4шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

18шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

10шт.

13

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 22 - 23

8шт.

14

47550990

MOUNTING PLATE

Bulkhead

8шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

8шт.

16

87752074

SCREW,HWH, M8 x 1.25 x 16mm

8шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

16шт.

18

47441458

HYDRAULIC HOSE

Pressure, Axle

2шт.

19

47441455

HYDRAULIC HOSE

Pressure, Axle

2шт.

20

47441453

HYDRAULIC HOSE

Drain, Axle

2шт.

21

47441454

HYDRAULIC HOSE

Drain, Axle

2шт.

22

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

28шт.

23

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

8шт.
