Запчасти Case IH QUADTRAC 470 (35.733.AC[06]) - REAR AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

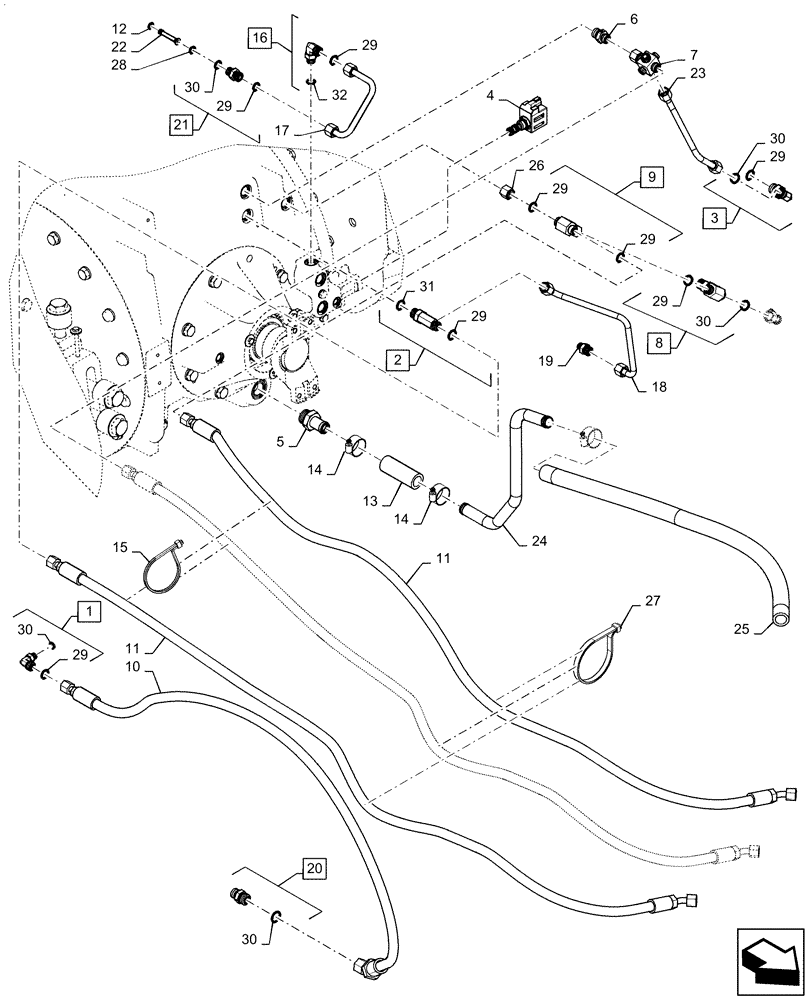

Схема запчастей Case IH QUADTRAC 470 - (35.733.AC[06]) - REAR AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
26
29
30
10
19
29
29
22
29
6
14
29
4
14
11
29
18
20
30
17
31
5
21
27
8
24
7
1
30
3
23
32
29
11
16
12
9
15
30
29
2
28
13
25
30

Артикул

Название

Примечание

Количество

1

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 29 - 30

1шт.

2

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 29, 31

1шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 29 - 30

1шт.

4

384977A1

VALVE

Solenoid

1шт.

5

390348A1

STEM

Hose Barb

1шт.

6

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief

1шт.

7

47433247

UNION CROSS

ORFS SWVL

1шт.

8

700-447

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 29 - 30

1шт.

9

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 29

1шт.

10

84244562

HOSE ASSY.,12.7mm ID x 1721mm L, SAE 100R1

AUX Drain

1шт.

11

47436603

HYDRAULIC HOSE

Axle Lube Pressure

2шт.

12

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

13

31-2757

HOSE,1.00" ID x 4.00"

1шт.

14

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

Hose

3шт.

16

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 29, 32

1шт.

17

84214260

TUBE

Axle Lube Crossover

1шт.

18

47429722

HYD TUBE

Axle Lube

1шт.

19

341195A1

ORIFICE

Orifice

1шт.

20

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 30

1шт.

21

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 29, 32

1шт.

22

87400028

ORIFICE

Front Pinion Cover

1шт.

23

47430727

HYD TUBE

Axle Lube Crossover

1шт.

24

47423060

HYD TUBE

Axle Drain

1шт.

25

31-2755

HOSE,1.00" ID

1шт.

26

701-905

CAP,13/16" - 16

1шт.

27

440567A1

CABLE TIE

Cable

1шт.

28

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

14шт.

30

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

8шт.

31

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

32

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

Выбрано товаров: 32
