Запчасти Case IH QUADTRAC 470 (35.733.AC[04]) - FRONT AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

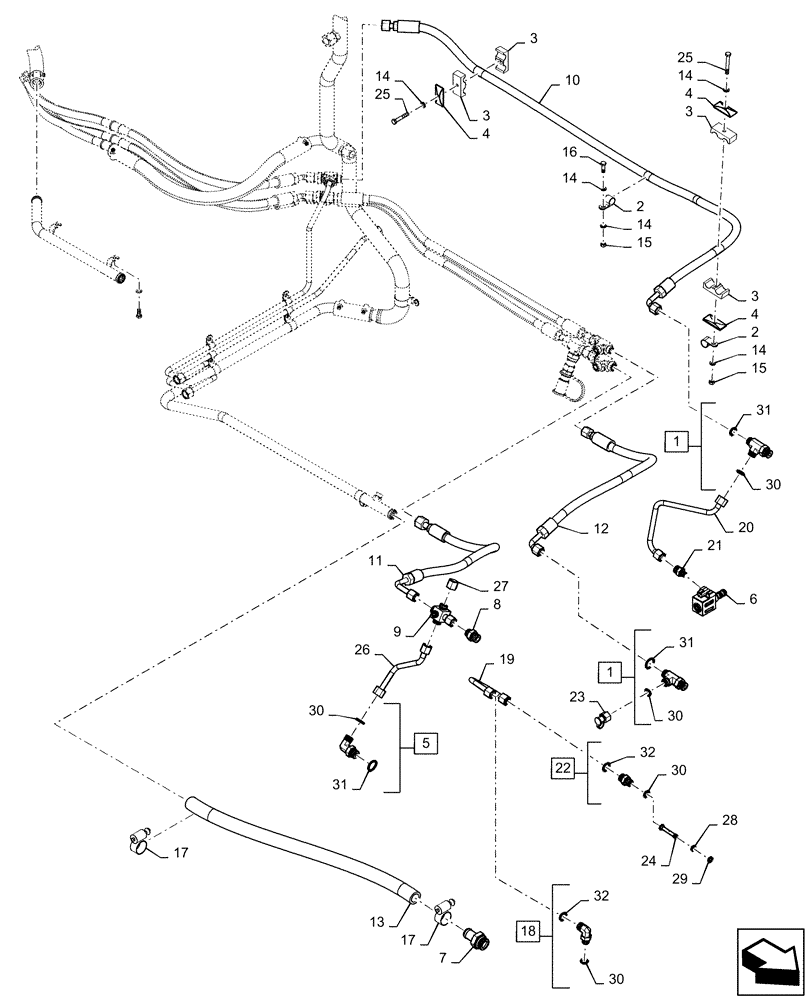

Схема запчастей Case IH QUADTRAC 470 - (35.733.AC[04]) - FRONT AXLE LUBRICATION LINES, W/ DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
3
32
30
4
14
24
14
13
4
30
32
3
27
5
8
12
4
3
2
17
1
17
26
1
31
28
23
30
18
15
16
21
25
6
7
3
9
11
15
19
2
14
29
14
14
31
20
25
10
31
22
30
30

Артикул

Название

Примечание

Количество

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 30 - 31

2шт.

2

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

3

50-2551T1

CLAMP

Tube

4шт.

4

50-2533T1

PLATE

Plate Cover

2шт.

5

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 30 - 31

1шт.

6

384977A1

VALVE

Solenoid

1шт.

7

390348A1

STEM

Hose

1шт.

8

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief

1шт.

9

47433247

UNION CROSS

Cross

1шт.

10

47510644

HYDRAULIC HOSE

Park Brake Pressure

1шт.

11

47435680

HYDRAULIC HOSE

Axle Lube Pressure

1шт.

12

47435682

HYDRAULIC HOSE

Service Brake

1шт.

13

87386393

HOSE

Hose

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

15

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

17

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

1шт.

18

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 30, 32

1шт.

19

84214260

TUBE

Axle Lube Crossover

1шт.

20

47429722

HYD TUBE

Axle Lube

1шт.

21

341195A1

ORIFICE

Orifice

1шт.

22

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 30, 32

1шт.

23

190316A1

COUPLING

Couple, Diagnostic

1шт.

24

87400028

ORIFICE

Front Pinion Cover

1шт.

25

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

1шт.

26

47430727

HYD TUBE

Axle Lube Crossover

1шт.

27

701-905

CAP,13/16" - 16

1шт.

28

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

29

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

30

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

31

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

32

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 32
