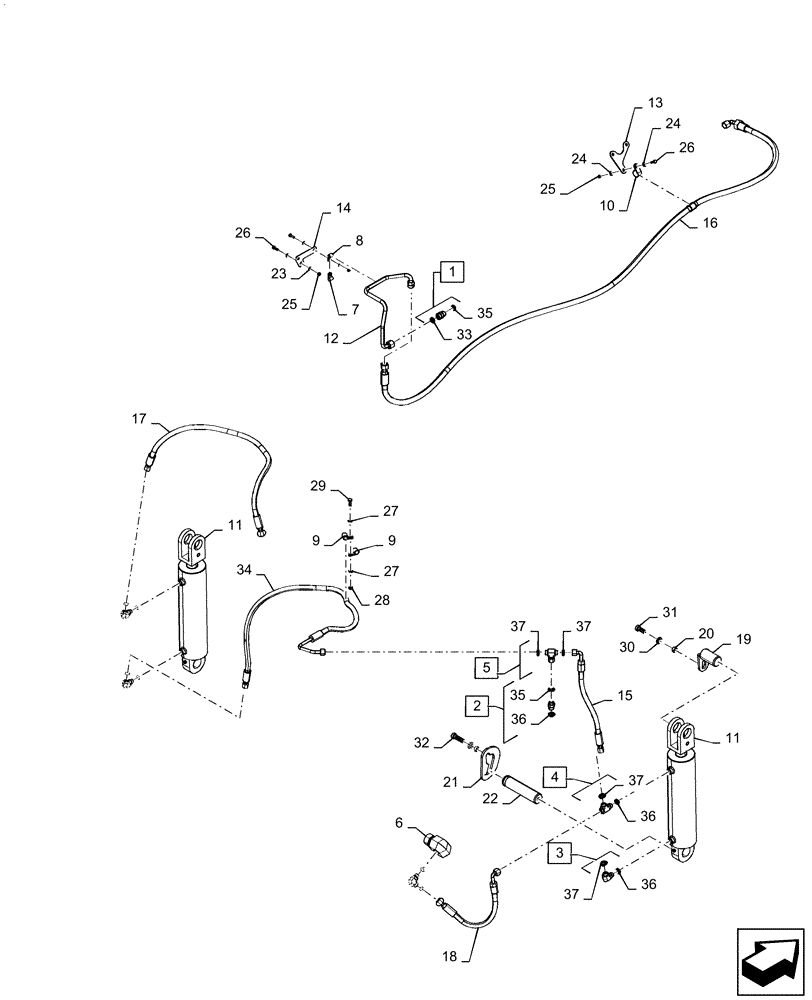

Запчасти Case IH QUADTRAC 470 (35.116.AD) - 3 POINT HITCH CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 33, 35

1шт.

2

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 35 - 36

1шт.

3

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 36 - 37

4шт.

4

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 36 - 37

1шт.

5

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 37

1шт.

6

84231925

ADAPTER

Elbow, 1-11/16" x 1-11/16"

1шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

9

515-24206

CLAMP,13/16", Insul, 7/16" Bolt

4шт.

10

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

11

84577084

LIFT CYLINDER,Double Acting, 50mm Rod, 353.3mm Stroke

Three Point Hitch

2шт.

12

84231920

RIGID TUBE

Drain, Three Point Hitch

1шт.

13

84406513

BRACKET

Hose Mount

1шт.

14

84276318

BRACKET

Tube Support

1шт.

15

84231916

HYDRAULIC HOSE

Raise, RH Cylinder

1шт.

16

84427225

HOSE ASSY.

Drain

1шт.

17

47733681

HOSE

Lower, LH Cylinder

1шт.

18

360496A1

HOSE ASSY.

Lower, RH Cylinder

1шт.

19

70-5973T2

PIN

Lift Cylinder, Upper

2шт.

20

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

16.7mm x 22.2mm x 11.2mm

4шт.

21

403204A1

PLATE

Mounting Pin Retaining

2шт.

22

321188A2

PIN,50.9mm OD x 215mm L

Mounting, Lift Cylinder, Lower

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

29

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

30

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

31

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

2шт.

32

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

2шт.

33

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

34

84231922

RIGID TUBE

Raise, LH Cylinder

1шт.

35

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

36

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

8шт.

37

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

5шт.
