Запчасти Case IH QUADTRAC 470 (33.220.AC) - TRAILER HYDRAULIC BRAKES LINES (33) - BRAKES & CONTROLS

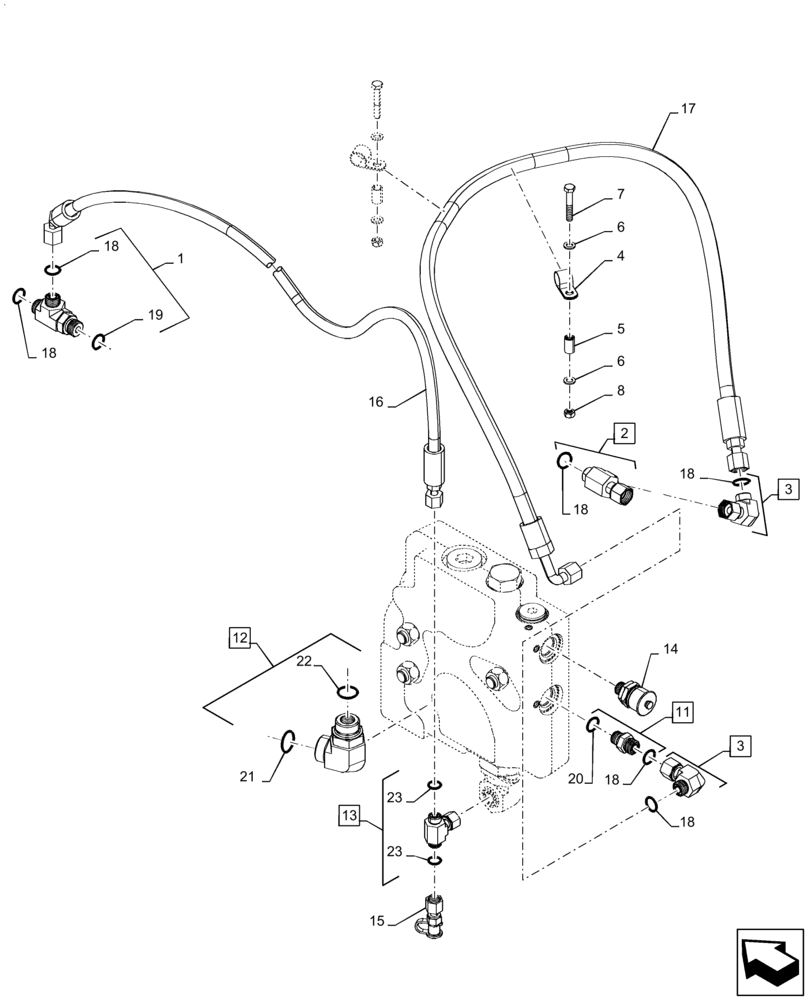

Схема запчастей Case IH QUADTRAC 470 - (33.220.AC) - TRAILER HYDRAULIC BRAKES LINES (33) - BRAKES & CONTROLS
18
18
18
18
23
21
22
18
16
8
23
5
4
14
3
12
15
6
20
11
6
18
17
7
19
1
3
13
2

Артикул

Название

Примечание

Количество

1

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 18 - 19

1шт.

2

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 18

1шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 18

2шт.

4

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

2шт.

5

414937A1

SPACER

9.25mm x 13.72mm x 22.4mm

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

9

86020619

SLEEVE

25.4mm ID x 570mm Long

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

11

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 18, 20

1шт.

12

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 21 - 22

1шт.

13

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 23

1шт.

14

87371306

COUPLING, QUICK, FEM

Trailer Brake

1шт.

15

190119A1

COUPLING

Diagnostic Port

1шт.

16

84214142

HOSE ASSY.

Trailer Brake Pressure

1шт.

17

87713536

HOSE

Trailer Brake Drain

1шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

7шт.

19

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

20

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

22

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

23

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

Выбрано товаров: 23
