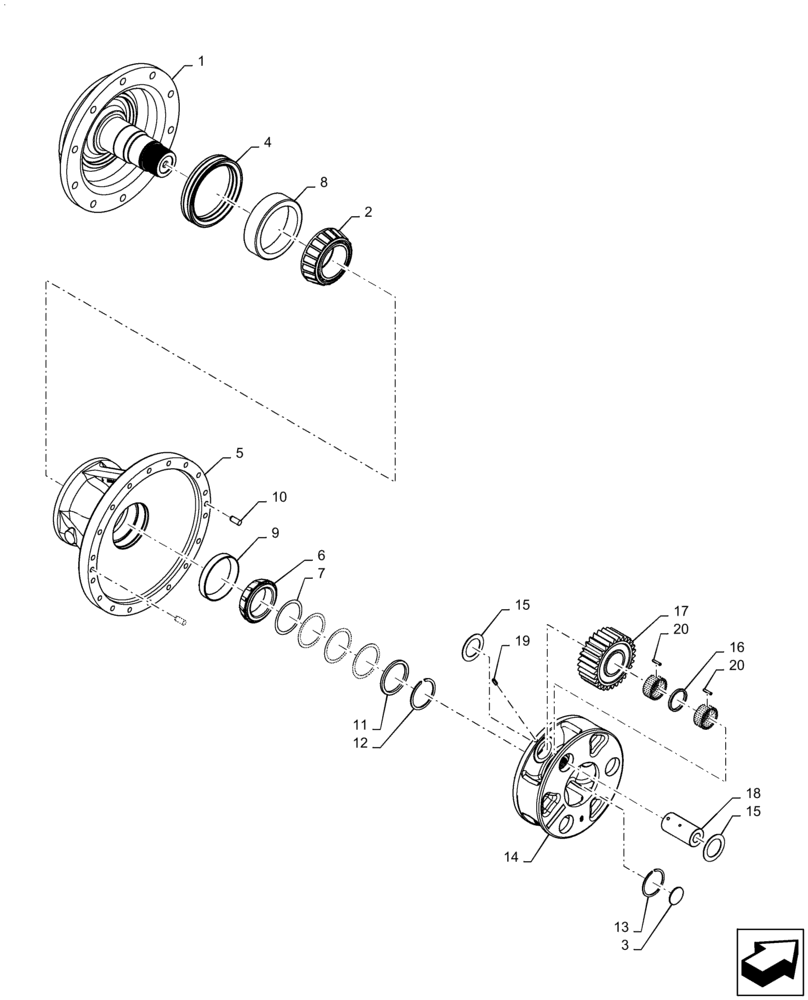

Запчасти Case IH QUADTRAC 470 (27.120.AI[03]) - PLANETARY REDUCER GEAR (27) - REAR AXLE SYSTEM

1

47498009

SHAFT

Final Drive Output Flange

1шт.

2

237700A1

TAPERED BEARING,114.3127 mm ID x 66.7766 mm

1шт.

3

1981270C1

INSERT

Axle Wear

1шт.

4

369532A2

SEAL,194mm ID x 238.76mm OD x 47mm Thk

76.85 x 42mm OD

1шт.

5

84467434

HUB CARRIER

Drive Shaft

1шт.

6

64370H

BEARING, ROLLER,101.6mm ID x 36.12mm W

1шт.

7

84304127

SHIM,102mm ID x 122mm O x 0.076mm Thk

Bearing 0.0760mm Thick

1шт.

7

84304128

SHIM,102mm ID x 122mm OD x 0.13mm Thk

Bearing 0.1270mm Thick

1шт.

7

84304129

SHIM,102mm ID x 122mm OD x 0.25mm Thk

Bearing 0.2540mm Thick

1шт.

7

84297753

SHIM,102mm ID x 122mm OD x 0.5mm Thk

Bearing 0.5080mm Thick

1шт.

8

237698A1

BEARING CUP,212.74mm OD x 53.87mm W

1шт.

9

64371H0

BEARING ASSY,157.16mm OD x 26.19mm W

1шт.

10

837-16040

DOWEL,M16 x 40

2шт.

11

84543043

RING,102mm ID x 120mm OD x 7.55mm Thk

Thrust Bearing

1шт.

12

84543180

SNAP RING,100mm, Internal

100mm Shaft

1шт.

13

101-11350

SNAP RING,#350, Ext

1шт.

14

47390479

PINION CARRIER

Planet Gear

1шт.

15

84214687

WASHER,64.3mm ID x 95mm OD x 2.6mm Thk

Thrust Planet Gear

6шт.

16

84214683

SPACER,66.5mm ID x 76.6mm OD x 7mm L

Needle Spacer

3шт.

17

310694A2

PLANETARY GEAR,29T

76.75mm ID, 29T

3шт.

18

310697A3

SHAFT,31.75mm ID x 63.4mm OD x 130mm L

Planet Gear

3шт.

19

838-3826

PIN,M8 x 26, Coiled

3шт.

20

1349347C1

NEEDLE ROLLER,Needle, 6.65mm OD x 34.09mm L

198шт.
