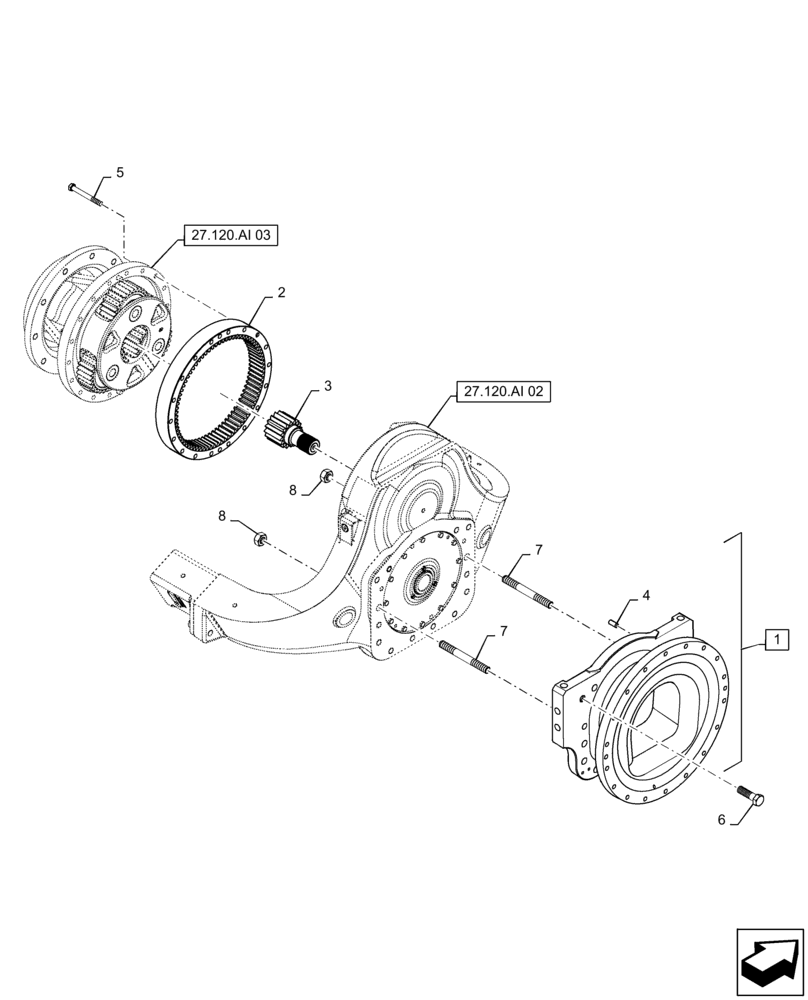

Запчасти Case IH QUADTRAC 470 (27.120.AI[01]) - AXLE CARRIER ASSY (27) - REAR AXLE SYSTEM

1

84523949

HOUSING

Rear Axle Extension, Incl 4

1шт.

2

310695A1

RING GEAR,77T

77T

2шт.

3

360335A1

SHAFT

Sun Gear, 16T

1шт.

4

837-16040

DOWEL,M16 x 40

2шт.

5

47418295

BOLT,Hex, M16 x 2 x 140mm, Class 10.9

18шт.

6

47418288

BOLT,Hex, M24 x 3 x 80mm, Class 10.9

12шт.

7

84536429

STUD

M24 x 3mm, 220mm Long

2шт.

8

87391840

NUT,M24 x 3, Class 10.9

2шт.
