Запчасти Case IH QUADTRAC 470 (27.106.AB[04]) - REAR AXLE DIFFERENTIAL, W/ DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

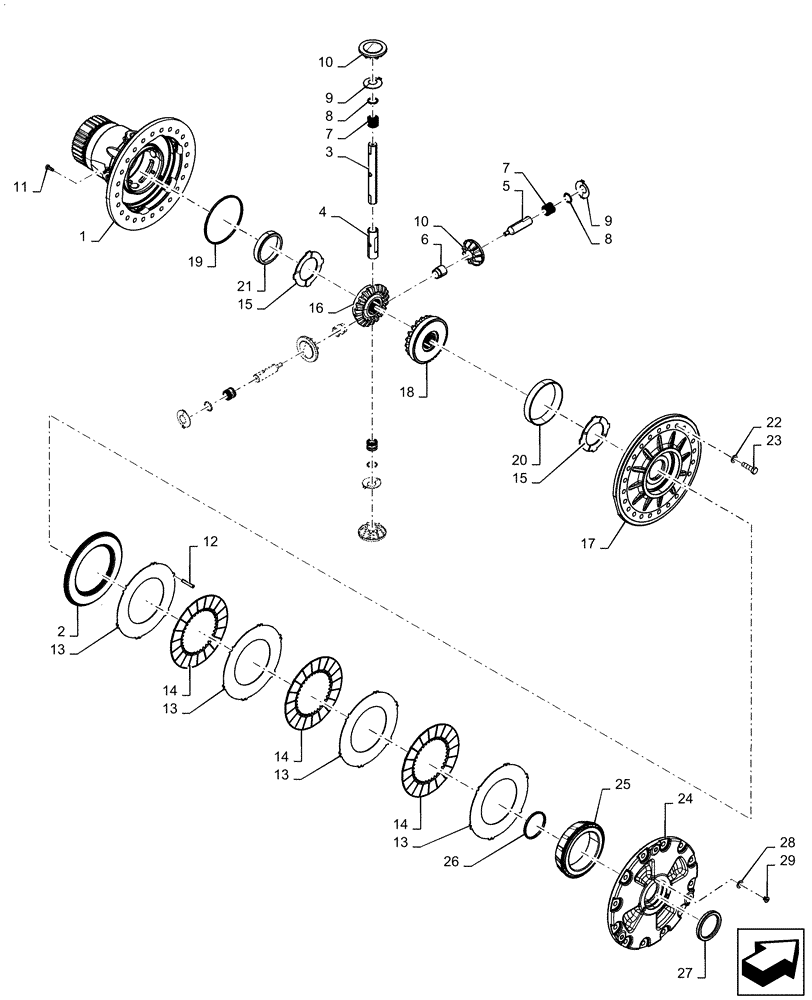

Схема запчастей Case IH QUADTRAC 470 - (27.106.AB[04]) - REAR AXLE DIFFERENTIAL, W/ DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
6
9
9
24
13
8
28
8
19
14
15
25
14
20
10
13
22
14
7
3
1
10
21
16
29
13
18
4
17
7
2
26
12
27
5
13
11
15
23

Артикул

Название

Примечание

Количество

1

47650237

CARRIER

Differential Assembly, W / Plugs

1шт.

2

1997422C1

PISTON

Break, Bonded

1шт.

3

92907C1

SHAFT

Differential Pinion, Long

1шт.

4

1289349C1

SPACER

Pinion Needle, Long

1шт.

5

92906C1

SHORT SHAFT

Differential Pinion

2шт.

6

1289350C1

SPACER

Differential Pinion Grar, Short

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Pinion Gear

112шт.

8

1289348C1

RING

Needle Bearing, Thrust

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

Differential Pinion

4шт.

10

92905C1

PINION

Pinion,Machined

4шт.

11

1997421C1

BOLT

Differential, Cross Pin

2шт.

12

137023A1

DOWEL

Lock Reactor

6шт.

13

92915C1

PLATE,192mm ID x 322mm OD x 2.74mm Thk

Lock Separator

4шт.

14

84225275

PLATE

Lock Friction

3шт.

15

84321280

SHIM,95mm ID x 158mm OD x 4.91mm Thk

Differential

2шт.

16

1259633C3

GEAR

Differential, Bevel, 20T

1шт.

17

84323113

COVER

Differential, Case W / Lock

1шт.

18

1259634C3

PINION

Gear, Bevel Lock

1шт.

19

148939C1

SEALING RING,OD 200.60 mm

Differential, Lock

1шт.

20

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

21

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

22

47600651

WASHER,Flat, 17.00mm ID x 30.00mm OD x 2.00mm

24шт.

23

48137515

LOCK BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

24шт.

24

369765A1

COVER

Differential, Assembly

1шт.

25

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

26

139060C1

SEALING RING

Differential, Bearing

1шт.

27

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Differential, Oil

1шт.

28

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

29

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

Выбрано товаров: 29
