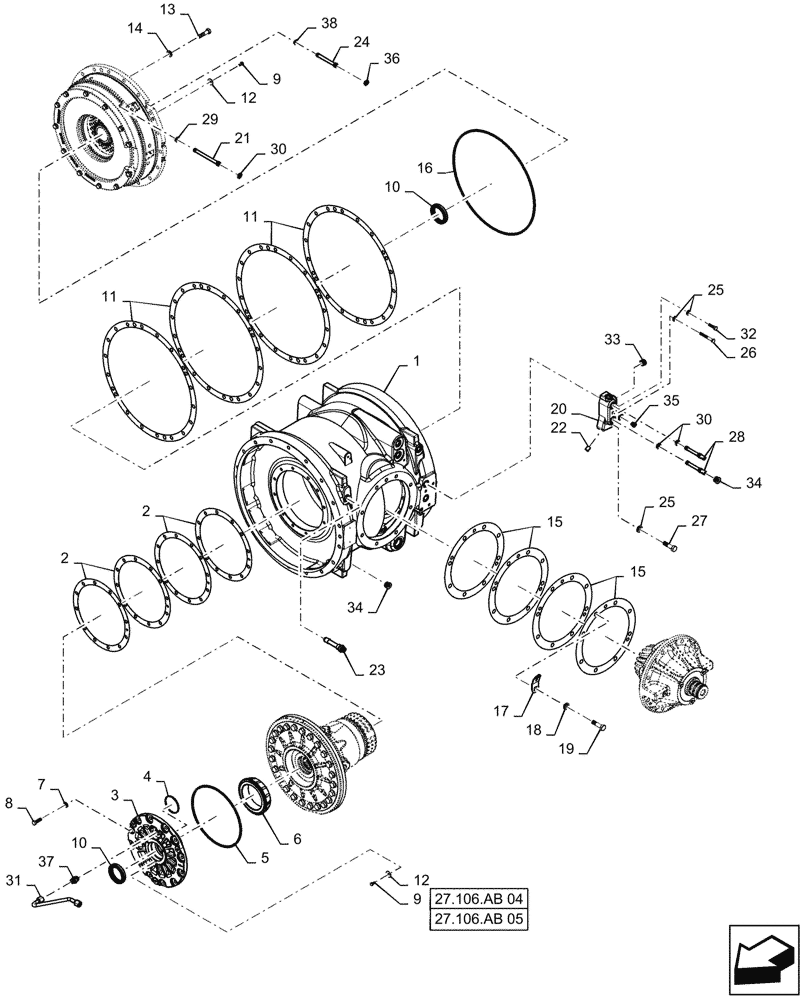

Запчасти Case IH QUADTRAC 470 (27.106.AB[01]) - REAR AXLE ASSY, HOUSING, GEARS & SUPPORT (27) - REAR AXLE SYSTEM

1

84604414

AXLE HOUSING

Rear Center Section, W/ Dowel

1шт.

2

47423116

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

2

47423117

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

2

47423118

SHIM,290mm ID x 345mm OD x 0.127mm Thk

1шт.

2

47423119

SHIM,290mm ID x 345mm OD x 0.508mm Thk

1шт.

3

47497743

BEARING CARRIER

LH Diff Bearing

1шт.

4

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

Ring Diff

1шт.

5

70925498

O-RING,0.139" Thk x 10.484" ID, -275, Cl 5, 75 Duro

1шт.

6

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

7

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

8

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

9

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

10

84466800

SEAL

Axle Beam - UpBox

2шт.

11

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

11

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

11

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

11

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

12

95-31038

WASHER,5/16"

6шт.

13

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

14

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.

15

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

15

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

15

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

15

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

16

84533260

O-RING,3.53mm Thk x 492.2mm ID, -947, Cl 5

1шт.

17

87306552

BRACKET

Axle

1шт.

18

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

19

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

20

47421816

HYDRAULIC MANIFOLD

Axle Lube, Incl 40

1шт.

21

298567A1

TUBE,11.85 mm OD, 156 mm Length

Uses 29

1шт.

22

87373620

PLUG,2.2mm ID x 4.9mm OD

5mm Expansion

1шт.

23

47420681

FITTING

M22 x1.5 ORFS x 3/4" - 16

1шт.

24

84468365

TUBE

Service Break Jumper, Uses 38

1шт.

25

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

26

828-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

1шт.

27

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

28

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

2шт.

29

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

30

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

4шт.

30

47795330

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

4шт.

31

47420676

HYD TUBE

UpBox Lube Return

1шт.

32

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

33

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

34

221579A1

PLUG,M22 x 1.5 ORB

3шт.

35

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

36

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

37

47418913

HYD CONNECTOR,M18 x 1.5 ORB x 3/4" - 16 JIC

1шт.

38

47795329

O-RING,0.07" Thk x 0.426" ID, -13, Cl 8, Duro 90

4шт.
