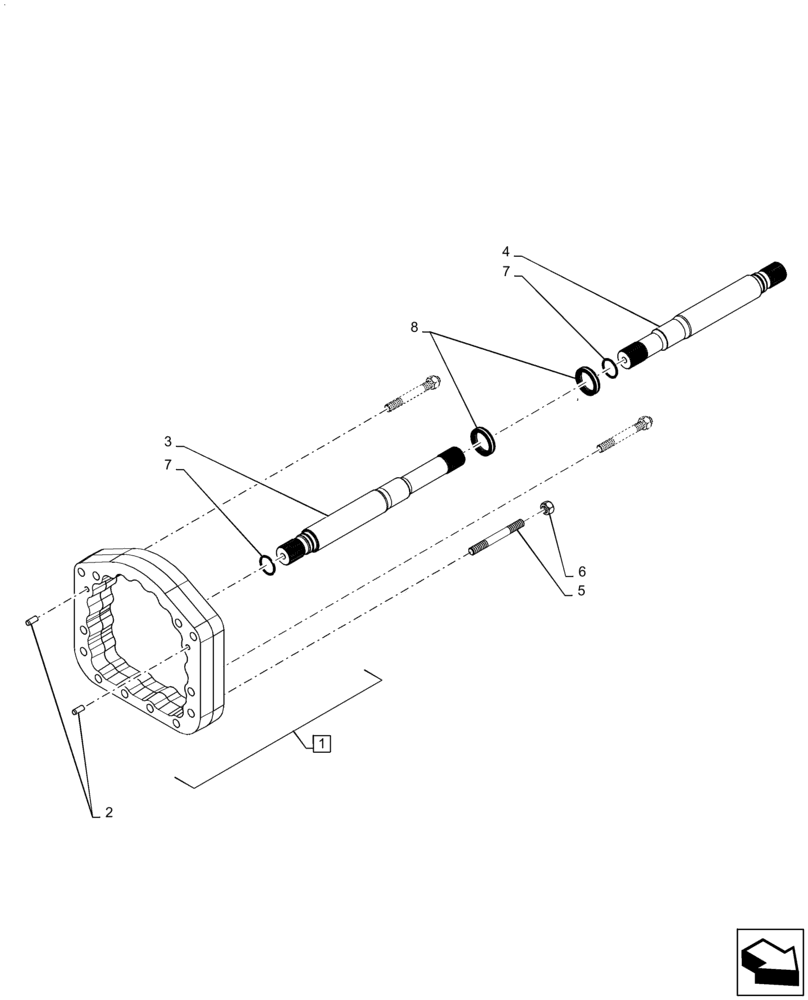

Запчасти Case IH QUADTRAC 470 (27.100.AK[04]) - 88" TREAD SPACER, ASN ZFF304716 (27) - REAR AXLE SYSTEM

1

47448317

SPACER

88" Tread, Incl 2

2шт.

2

837-16040

DOWEL,M16 x 40

4шт.

3

47637137

SHAFT,673.6mm L

Shaft, 88" RH

1шт.

4

47637138

SHAFT,759.7mm L

88" LH

1шт.

5

84536429

STUD

M24 x 3 x 220mm

28шт.

6

829-1324

NUT

M24 x 3, Class 10

28шт.

7

510185

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

8

84466800

SEAL

Axle Shaft

2шт.
