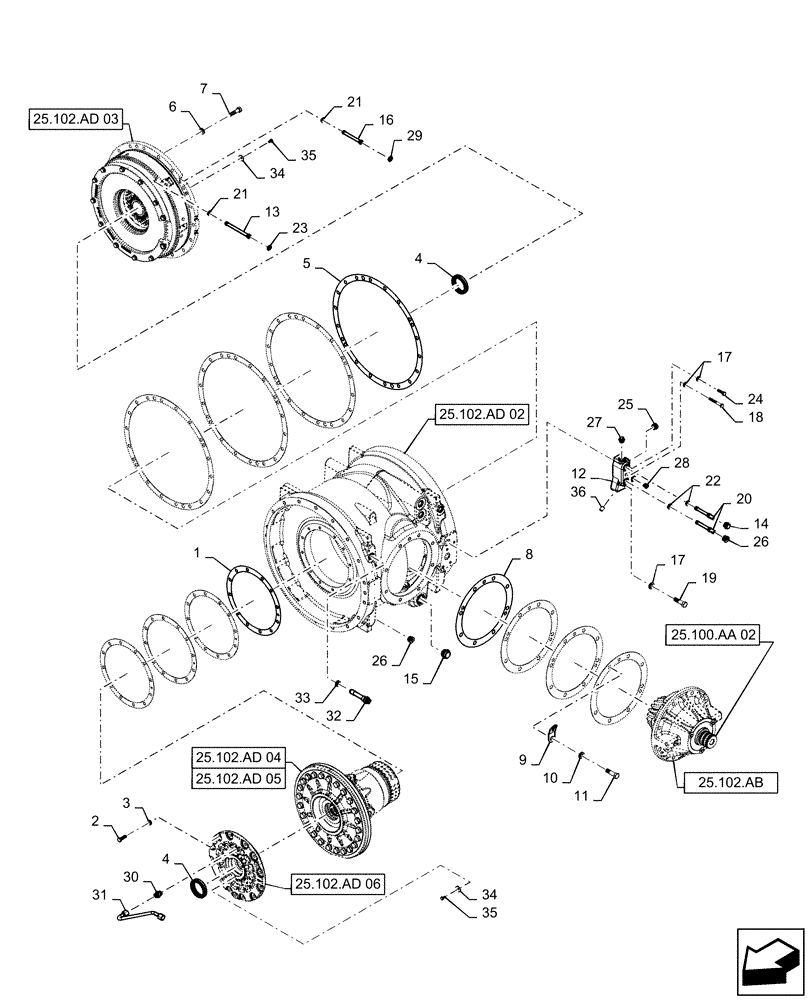

Запчасти Case IH QUADTRAC 470 (25.102.AD[01]) - FRONT AXLE CARRIER (25) - FRONT AXLE SYSTEM

1

47423116

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

1

47423117

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

1

47423118

SHIM,290mm ID x 345mm OD x 0.127mm Thk

1шт.

1

47423119

SHIM,290mm ID x 345mm OD x 0.508mm Thk

1шт.

2

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

3

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

4

84466800

SEAL

Oil, Axle Beam

2шт.

5

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

5

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

5

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

5

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

6

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

7

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.

8

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

8

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

8

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

8

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

9

84217051

BRACKET

Axle

1шт.

10

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

11

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

12

47421816

HYDRAULIC MANIFOLD

Axle Lube

1шт.

13

298567A1

TUBE,11.85 mm OD, 156 mm Length

1шт.

14

553-101

PLUG,M22 x 1.5, ORB, Plastic

4шт.

15

86639022

PLUG

M33

1шт.

16

84468365

TUBE

Service Brake Jump

1шт.

17

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

18

828-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

1шт.

19

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

1шт.

20

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

2шт.

21

47795329

O-RING,0.07" Thk x 0.426" ID, -13, Cl 8, Duro 90

4шт.

22

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

23

47795330

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

4шт.

24

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

25

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

26

221579A1

PLUG,M22 x 1.5 ORB

3шт.

27

553-102

PLUG,M18 x 1.5, ORB, Plastic

1шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

1шт.

29

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

30

47418913

HYD CONNECTOR,M18 x 1.5 ORB x 3/4" - 16 JIC

1шт.

31

47420676

HYD TUBE

Upbox Lube Return

1шт.

32

47420681

FITTING

M22 x 1.5 ORFS x 3/4-16UNF FLARE

1шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

34

95-31038

WASHER,5/16"

6шт.

35

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

6шт.

36

87373620

PLUG,2.2mm ID x 4.9mm OD

Expansion Type, 5mm

1шт.
