(25.100.AA[02]) - FRONT AXLE ASSY

Запчасти Case IH QUADTRAC 470 (25.100.AA[02]) - FRONT AXLE ASSY (25) - FRONT AXLE SYSTEM

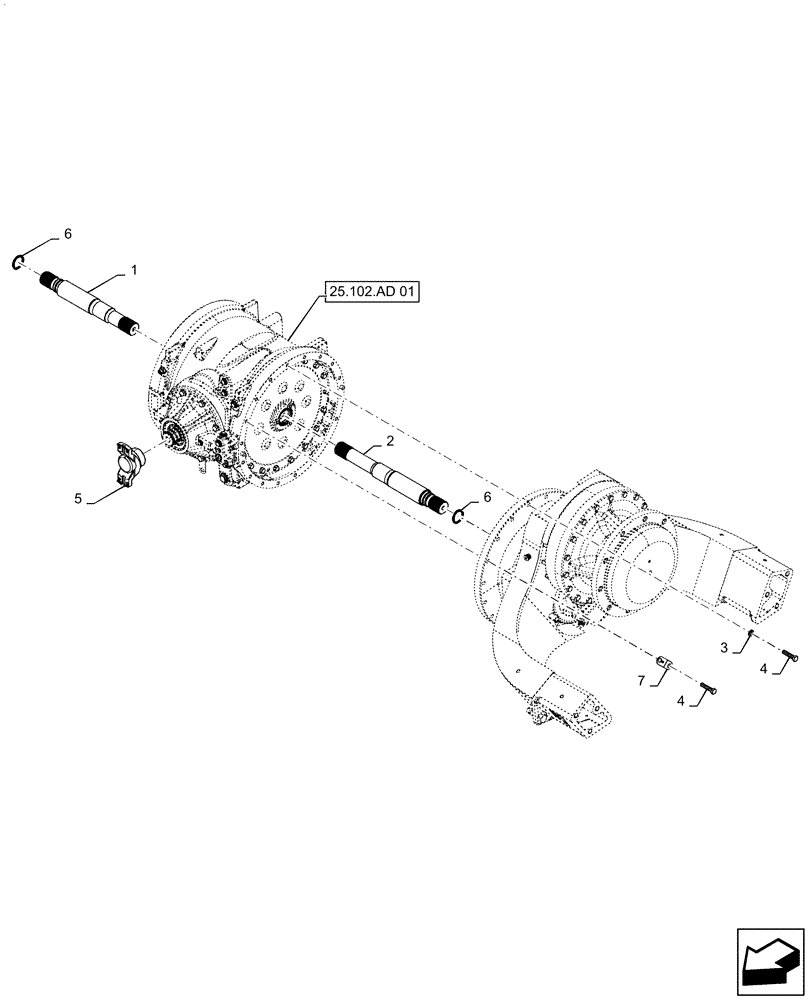

Схема запчастей Case IH QUADTRAC 470 - (25.100.AA[02]) - FRONT AXLE ASSY (25) - FRONT AXLE SYSTEM
25.102.ad 01
4
4
2
7
6
6
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84467440

AXLE,570mm L

Diff Lock 80 Inch, RH

1шт.

2

84467441

AXLE,662mm L

Diff Lock 80 Inch, LH

1шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

34шт.

4

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

36шт.

5

395209A1

YOKE

Sliding

1шт.

6

84557164

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

3.55 x 36.7mm, CL 5

2шт.

7

87306552

BRACKET

Axle

2шт.
