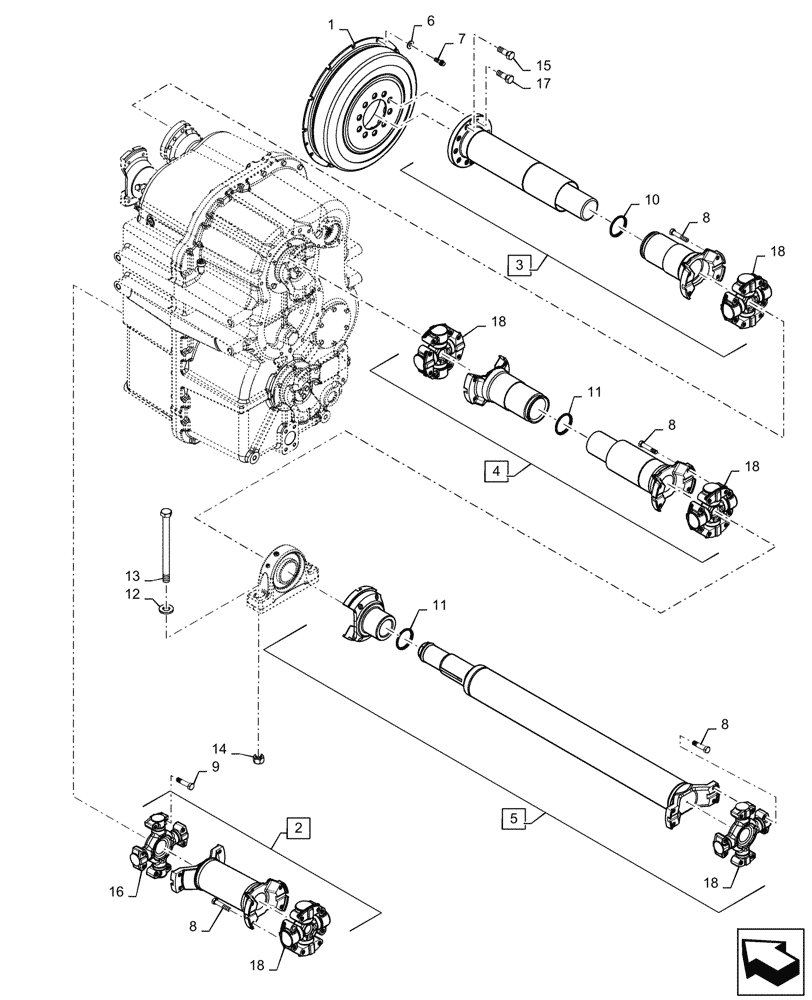

Запчасти Case IH QUADTRAC 470 (23.314.150) - DRIVE SHAFT ASSY, 8.5C (23) - FOUR WHEEL DRIVE SYSTEM

1

378758A2

DAMPER

Vibration

1шт.

2

47405618

DRIVE SHAFT

Front Axle, 8.5C, Incl 8, 16, 18

1шт.

3

84300980

DRIVE SHAFT

Engine, Incl 8, 10, 18

1шт.

4

402192A1

DRIVE SHAFT

Articulation, Incl 8, 11, 18

1шт.

5

84533623

DRIVE SHAFT

Rear Axle, 8.5C, Incl 8, 11, 18, Serial Range: -ZGF308725

1шт.

5

47907482

DRIVE SHAFT

Rear Axle, 8.5C, Incl 8, 11, 18, Start Serial: ZGF308726

1шт.

6

496-81010

WASHER

0.469" x 1" x 0.105"

12шт.

7

47379836

12 PT SCREW

Flange, 7/16" x 1"

12шт.

8

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

40шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

10

47538943

SEAL

Drive Shaft Wiper

1шт.

11

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Drive Shaft Wiper

2шт.

12

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

13

827-20250

BOLT,Hex, M20 x 2.5 x 250mm, Cl 10.9

2шт.

14

829-1420

NUT,M20, Cl 10

2шт.

15

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

10шт.

16

86000308

UNIVERSAL JOINT

U-Joint Spider, 8C

1шт.

17

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

4шт.

18

309093A1

UNIVERSAL JOINT

8.5C

5шт.
