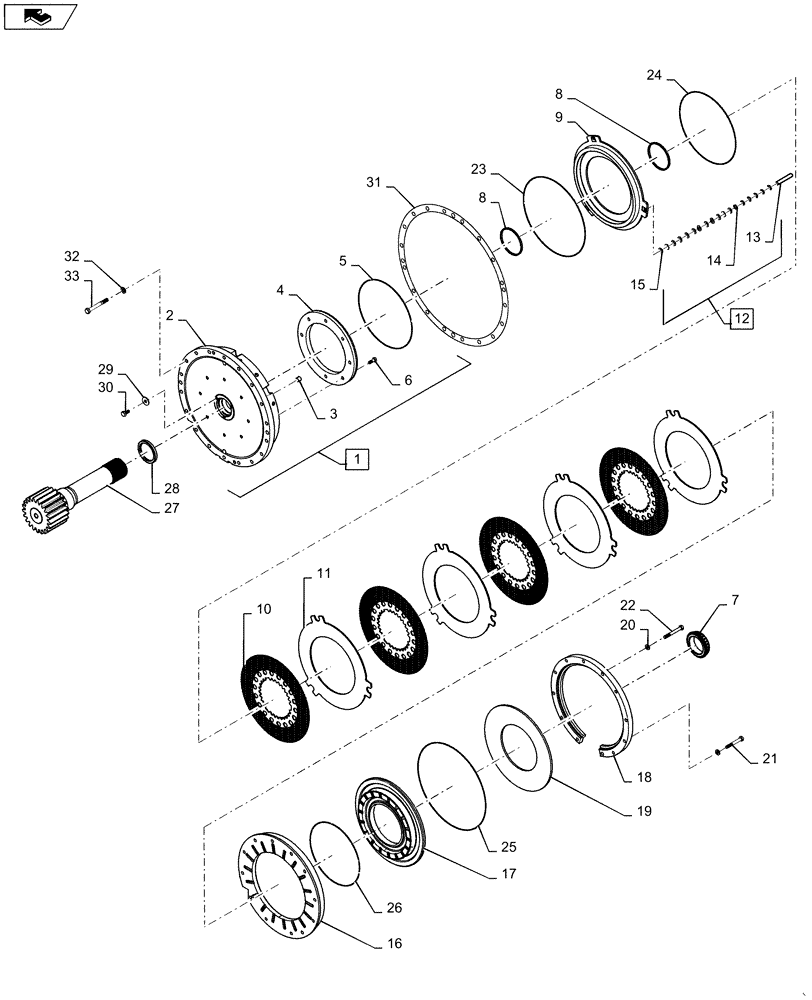

Запчасти Case IH QUADTRAC 450 (25.100.15) - 500 SERIES AXLE - BRAKE AND RIGHT-HAND CARRIER - STEIGER 500HD & 550, QUADTRAC 450 & 500 (25) - FRONT AXLE SYSTEM

1

84246388

BEARING CARRIER

Assy., Incl 2 - 6, Wheeled, Use With 386.95 mm Dia Service Brake Piston

1шт.

1

84466646

BEARING CARRIER

Assy., Incl 2 - 6, Wheeled, Use With 388.9 mm Dia Service Brake Piston

1шт.

1

84332745

BEARING CARRIER

Assy., Incl 2 - 6, QuadTrac, Use With 386.95 mm Dia Service Brake Piston

1шт.

1

84466688

BEARING CARRIER

Assy., Incl 2 - 6, QuadTrac, Use With 388.9 mm Dia Service Brake Piston

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER, Diff Bearing/Brake Wheel, Incl in 1

1шт.

3

87520609

PLUG

Expansion, 6.5mm

1шт.

4

NSS

NOT SOLD SEPARAT

INSERT, Brake Piston Bore, Incl in 1

1шт.

5

238-5279

O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro

1шт.

6

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

7

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

1шт.

8

388308A1

SEALING RING

Ring

2шт.

9

84301260

PISTON

Service Brake, 386.95 mm Dia

1шт.

9

84466702

PISTON

Service Brake, 388.9 mm Dia

1шт.

10

353363A1

PLATE

Friction

4шт.

11

228193A1

PLATE

Separator

4шт.

12

363254A1

ADJUSTER

Incl 13 - 15

3шт.

13

NSS

NOT SOLD SEPARAT

DOWEL PIN, Incl in 12

1шт.

14

100-1450

SNAP RING,#50, Ext

6шт.

15

1342928C1

BELLEVILLE WASHER

12шт.

16

353367A3

PLATE

Brake Backing, Wheeled, Serial Range: -ZGF308665

1шт.

16

353366A3

PLATE

Brake Backing, QuadTrac, Serial Range: -ZGF308665

1шт.

16

47773179

PLATE

Brake Backing, Start Serial: ZGF308666

1шт.

17

353369A1

PISTON

Park Brake, Serial Range: -ZGF308665

1шт.

17

47773178

PISTON

Park Brake, Start Serial: ZGF308666

1шт.

18

279707A1

RETAINER

Spring

1шт.

19

226320A1

BELLEVILLE WASHER,225mm ID x 415mm OD x 7.799mm Thk

Park Brake

1шт.

20

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

21

828-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

22

828-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

10шт.

23

238-7281

O-RING,0.139" Thk x 14.984" ID, -281, Cl 7, 75 Duro

Use With 386.95 mm Dia Service Brake Piston

1шт.

23

84470492

O-RING

Use With 388.9 mm Dia Service Brake Piston

1шт.

24

14469781

O-RING,12.984" ID x 13.265" OD x 0.139"

Use With 386.95 mm Dia Service Brake Piston

1шт.

24

84470491

O-RING

Use With 388.9 mm Dia Service Brake Piston

1шт.

25

238-7282

O-RING,0.139" Thk x 15.96" ID, -282, Cl 7, 75 Duro

1шт.

26

238-7278

O-RING,0.139" Thk x 11.984" ID, -278, Cl 7, 75 Duro

1шт.

27

279718A2

SHAFT

Sun Gear, Long, Wheeled

1шт.

27

279843A2

SHAFT,364mm L

Sun Gear, Long, QuadTrac

1шт.

28

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

29

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

30

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

31

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

31

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

31

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

31

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

32

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

33

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.
