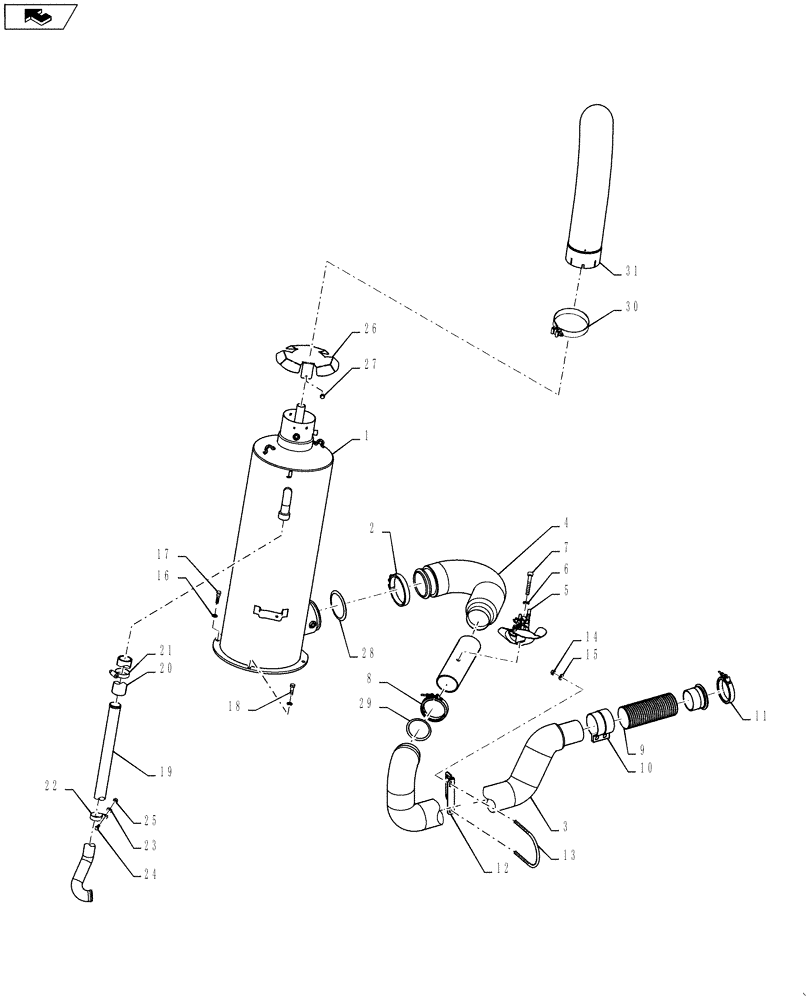

Запчасти Case IH QUADTRAC 450 (10.500.05) - SCR EXHAUST - QUADTRAC 450 & 500 (10) - ENGINE

1

84366817

MUFFLER

SCR 33L Volume

1шт.

2

84469765

CLAMP,Exhaust; 5"

5 In.

1шт.

3

84481940

TUBE

Exhaust

1шт.

4

84306570

TUBE

Dosing Module

1шт.

5

84248058

MODULE

DENOX2 Urea Dosing - 9KG/H

1шт.

5

47511725R

REMAN ELECT CONTROL

QUADTRAC® 450, QUADTRAC® 500, Both 4WD TRACTOR, DENOX2 Urea Dosing - 9KG/H (4/11-), Reman for New PN 84248058

1шт.

5

47511725C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

3шт.

8

84356331

CLAMP,118mm OD x 26mm W

118.8mm OD

1шт.

9

84481803

EXHAUST SYSTEM PIPE

Adapter, Turbo

1шт.

10

90-8319T1

CLAMP

Band

1шт.

11

84347357

CLAMP

124.5mm OD

1шт.

12

84378749

BRACKET

Support

1шт.

13

84354957

U-BOLT

Exhaust Support

1шт.

14

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

15

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

17

84364685

SPECIAL BOLT

Breakaway, M12

2шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

19

84358376

AIR INTAKE TUBE

Aspiration

1шт.

20

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

Jumper

1шт.

21

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

2шт.

22

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

26

84331669

INTRODUCTION CAP

Temporary Shipping

1шт.

27

782-84413

SELF-TAP SCREW,Hex Flg, M4.8 x 1.6 x 13mm

3шт.

28

84349224

GASKET

5" Exhaust

1шт.

29

84349222

GASKET,1.3mm Thk

4" Exhaust

1шт.

30

87430634

CLAMP,159.5mm ID

Muffler Elbow

1шт.

31

84525934

ELBOW

Muffler Stack

1шт.
