Запчасти Case IH QUADTRAC 450 (90.112.02) - DECELERATOR PEDAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

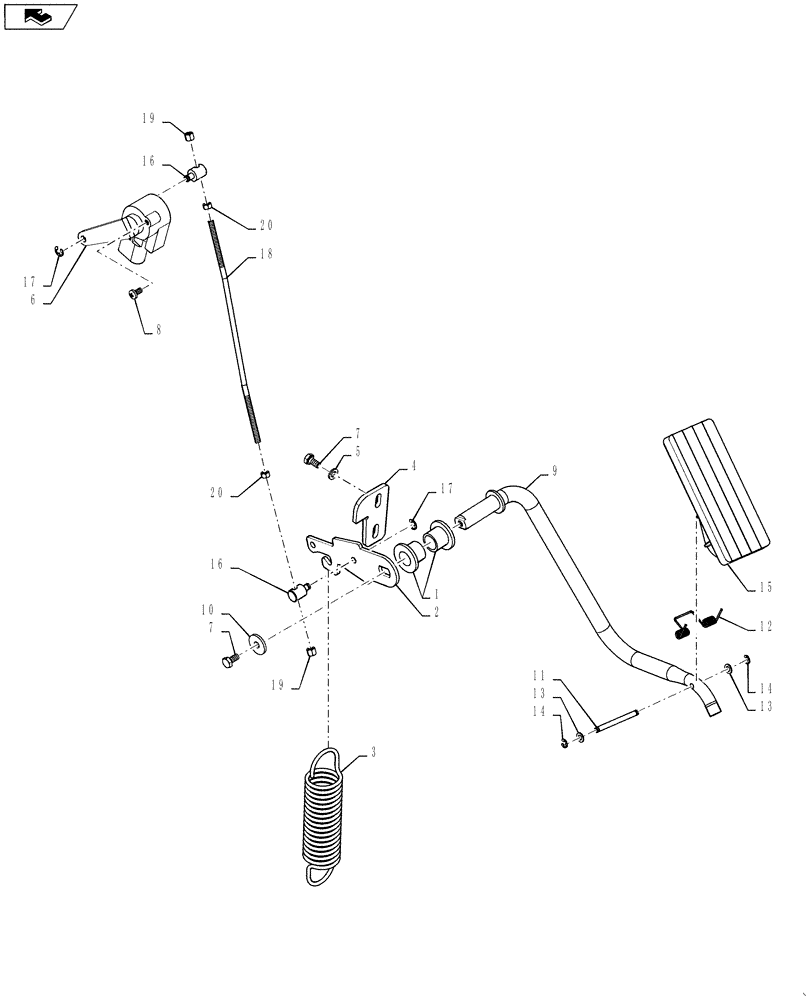

Схема запчастей Case IH QUADTRAC 450 - (90.112.02) - DECELERATOR PEDAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
10
13
16
20
8
13
2
4
19
home
16
9
19
12
17
15
7
6
14
7
1
18
20
17
11
14
3

Артикул

Название

Примечание

Количество

1

300891A1

FLANGED BEARING

Flanged

2шт.

2

84225233

BRACKET, SUPPORTING

Decel

1шт.

3

278211A1

SPRING

Extension

1шт.

4

281115A1

BRACKET

Decel Stop

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

6

84129020

SENSOR

Foot Decelerator

1шт.

For Decelerator Switch, See Figure 55.440.08

1шт.

7

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

3шт.

8

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

2шт.

9

328353A2

ROD

Decelerator

1шт.

10

396-41028

WASHER,.281" x 7/8" x .098", HDN

1шт.

11

255291A1

PIN,5mm OD x 56mm L

Decelerator Pad

1шт.

12

256776A1

SPRING

Foot Decelerator Pad

1шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

6шт.

14

800-435

CIRCLIP,M5

2шт.

15

297853A2

PEDAL

Decelerator

1шт.

16

307475A1

PIVOT

Control Cable Attach

2шт.

17

800-316

CIRCLIP,M6

2шт.

18

84216199

THREADED ROD

M5-0.8-6G x 47 Both Ends

1шт.

19

832-10405

NUT,M5 x .8, Cl 8

2шт.

20

824-1405

NUT,M5, Cl 5

2шт.

Выбрано товаров: 21
