Запчасти Case IH QUADTRAC 450 (55.986.02) - BATTERY EQUALIZER/CONVERTER - QUADTRAC (55) - ELECTRICAL SYSTEMS

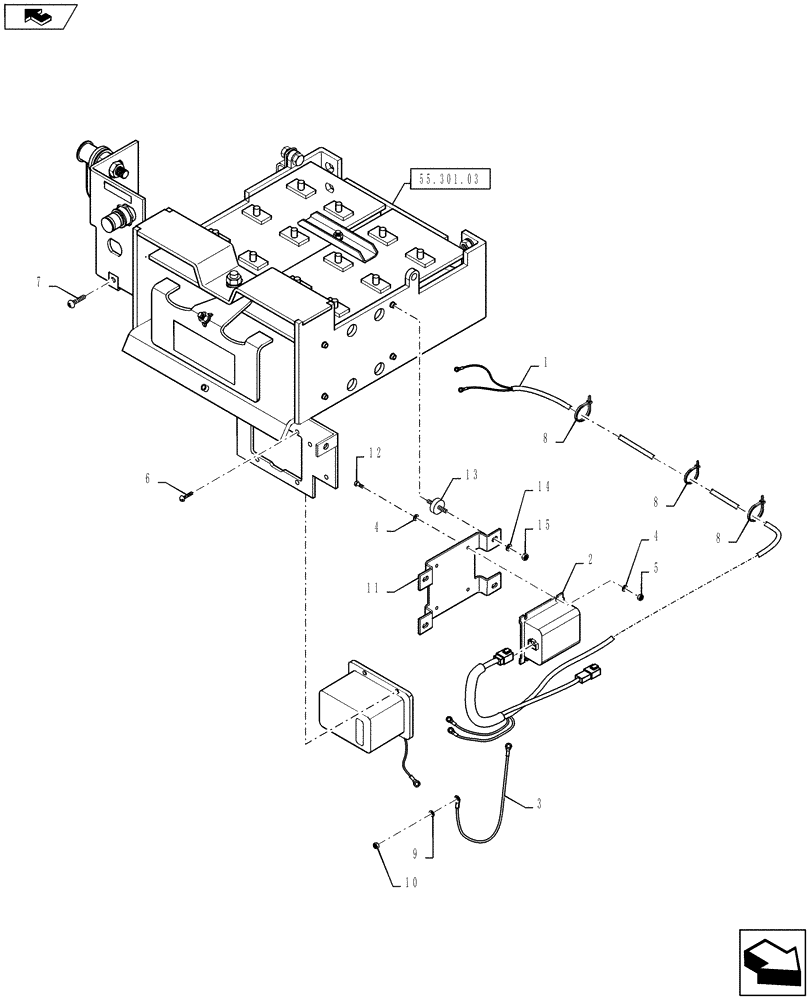

Схема запчастей Case IH QUADTRAC 450 - (55.986.02) - BATTERY EQUALIZER/CONVERTER - QUADTRAC (55) - ELECTRICAL SYSTEMS
14
13
8
12
15
8
4
11
3
8
4
5
6
7
10
1
9
55.301.03
2
home

Артикул

Название

Примечание

Количество

1

84250817

HARNESS

Battery Equalizer, 24V

1шт.

2

47489949

CONVERTER,12V To 24V

Equalizer/Converter, 12 VDC To 24 VDC

1шт.

2

47489949R

REMAN-MODULE

Equalizer / Converter, 12 Volt to 24 Volt

1шт.

2

47489949C

CORE-MODULE

Return Number

1шт.

3

84247168

CABLE

24V Power

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

5

832-10406

NUT,M6 x 1, Cl 8

4шт.

6

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

4шт.

7

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Black, 7 - 8 Inch Nylon

3шт.

9

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

10

225-14210

NUT,#10-32

1шт.

11

84322908

BRACKET, SUPPORTING

24V Equalizer Mount

1шт.

12

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

13

84316981

ISOLATOR

Vibration Dampening

4шт.

14

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

15

425-104

NUT,1/4"-20, Cl 5

4шт.

Выбрано товаров: 17
