Запчасти Case IH QUADTRAC 450 (55.301.03) - BATTERIES AND TRAY ASSEMBLY - QUADTRAC (55) - ELECTRICAL SYSTEMS

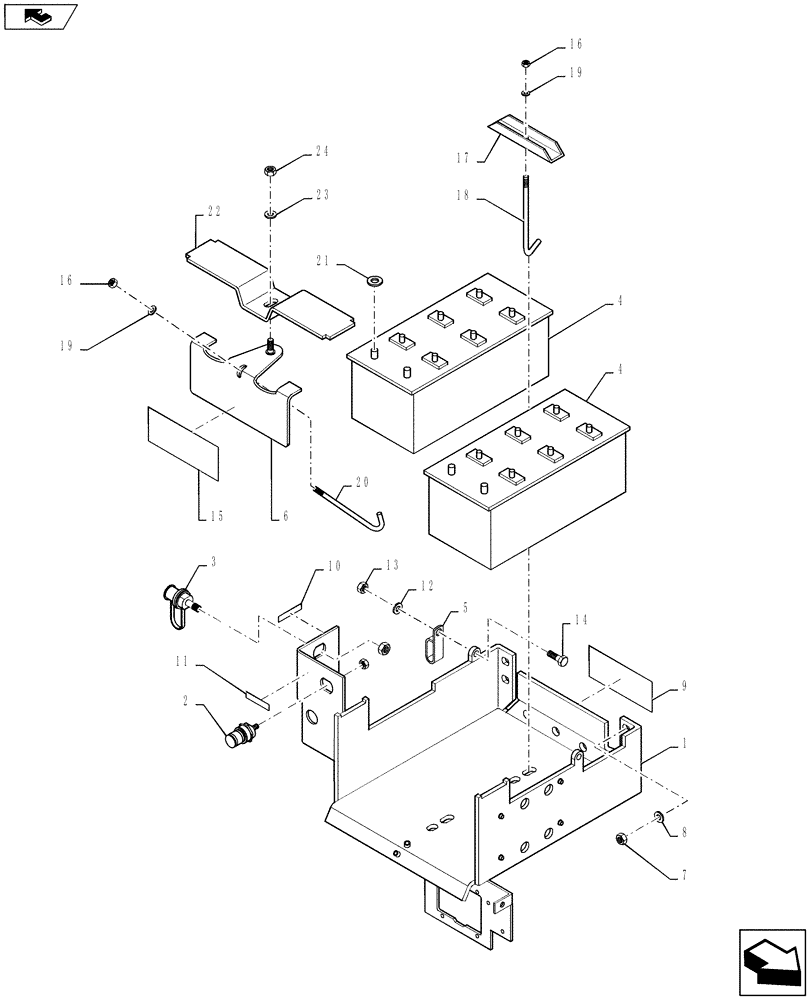

Схема запчастей Case IH QUADTRAC 450 - (55.301.03) - BATTERIES AND TRAY ASSEMBLY - QUADTRAC (55) - ELECTRICAL SYSTEMS
13
21
5
9
15
23
16
19
3
10
11
7
1
12
6
4
18
4
22
20
17
24
14
8
19
2
16
home

Артикул

Название

Примечание

Количество

1

84360206

BATTERY TRAY

Assy

1шт.

2

84258928

TERMINAL CONNECTOR

Jump Start Negative Long

1шт.

3

1964554C1

TERMINAL

Jump Start Positive Long

1шт.

4

BCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

NA

2шт.

4

CCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

Canada

2шт.

5

L111928

CLAMP

Double

1шт.

6

84346930

BRACKET

Battery Hold Down Assembly

1шт.

7

829-1412

NUT,M12, Cl 10.9

8шт.

8

892-11012

LOCK WASHER,M12

7шт.

9

87427097

DECAL

Danger, Battery

1шт.

10

87427096

DECAL

Charging Post

1шт.

11

87427317

DECAL

Negative Post

1шт.

12

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

15

87422330

IMPORTANT DECAL

Battery

1шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

17

84213124

BRACKET

Channel, Battery Hold-Down

1шт.

18

87413678

ROD

Battery Hold-Down

1шт.

19

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

20

365357A1

ROD

Battery Hold-Down

1шт.

21

87637103

WASHER

Lead Post Corrosion

2шт.

22

84315779

BRACKET

Shield, Battery Post

1шт.

23

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

24

832-46406

NUT,M6 x 1, Cl 8

1шт.

Выбрано товаров: 25
