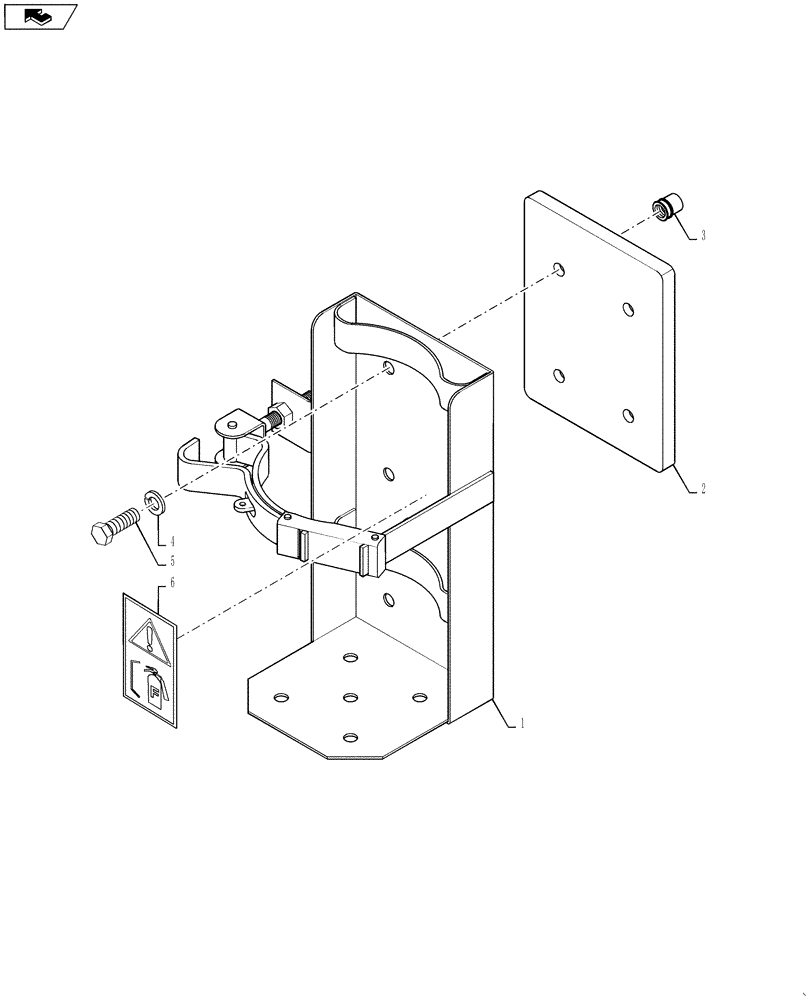

Запчасти Case IH QUADTRAC 450 (05.102.03) - FIRE EXTINGUISHER MOUNTING - QUADTRAC (EUROPE) (05) - SERVICE & MAINTENANCE

1

87427312

BRACKET, SUPPORTING

Fire Extinguisher

1шт.

2

84306976

BRACKET, SUPPORTING

Fire Extinguisher

1шт.

3

427218A1

INSERT

Threaded Knurled

4шт.

4

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

84269927

DECAL

Fire Extinguisher

1шт.
