Запчасти Case IH QUADTRAC 450 (48.130.01) - TRACK DRIVE WHEEL AND UNDERCARRIAGE MOUNTING (48) - TRACKS & TRACK SUSPENSION

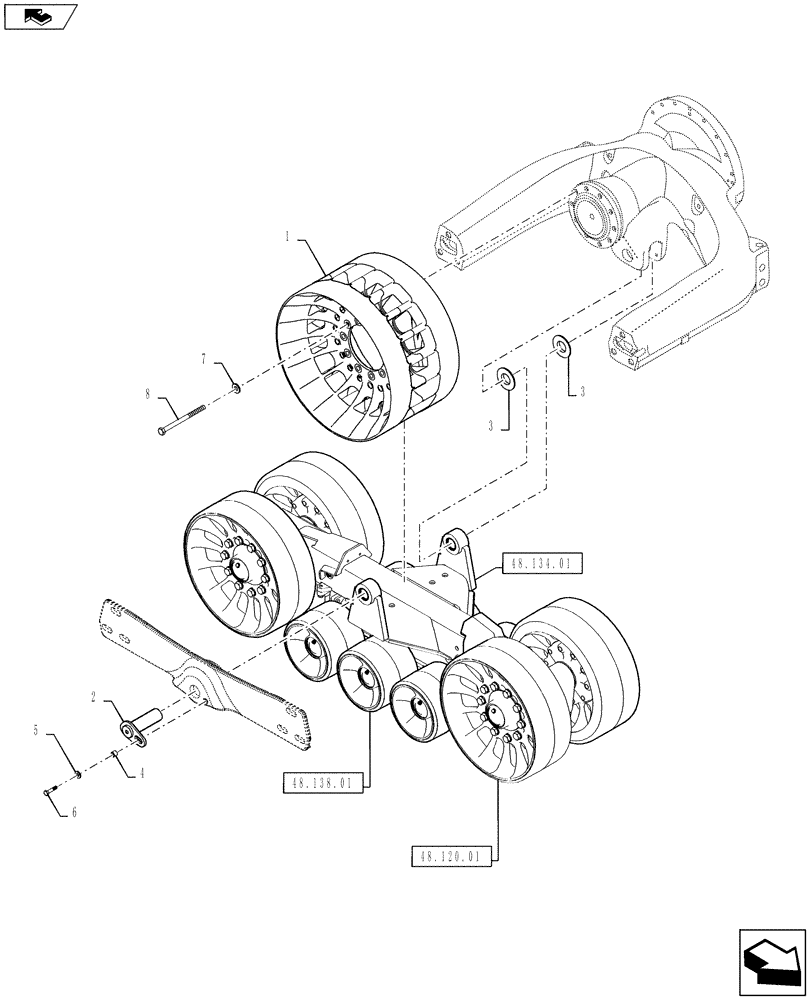

Схема запчастей Case IH QUADTRAC 450 - (48.130.01) - TRACK DRIVE WHEEL AND UNDERCARRIAGE MOUNTING (48) - TRACKS & TRACK SUSPENSION
3
5
6
4
1
8
7
2
48.138.01
48.134.01
48.120.01
3
home

Артикул

Название

Примечание

Количество

1

87498856

WHEEL,281.2mm ID x 910mm OD x 523mm W

Drive

4шт.

2

87423822

PIN,57.06mm OD x 167mm L

Flag

8шт.

3

87423202

THRUST BEARING,58mm ID x 115mm OD x 5mm Thk

Thrust

8шт.

4

87423819

SPACER

22mm OD 17mm ID x 15mm

8шт.

5

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

6

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

Ag Version

8шт.

6

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

Scraper Version

8шт.

7

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

40шт.

8

627-24070

BOLT,Hex, M24 x 3 x 70mm, Cl 10.9, Full Thd

40шт.

9

31-3183

HOSE

Pressure Relief (Not Shown)

1шт.

Выбрано товаров: 10
