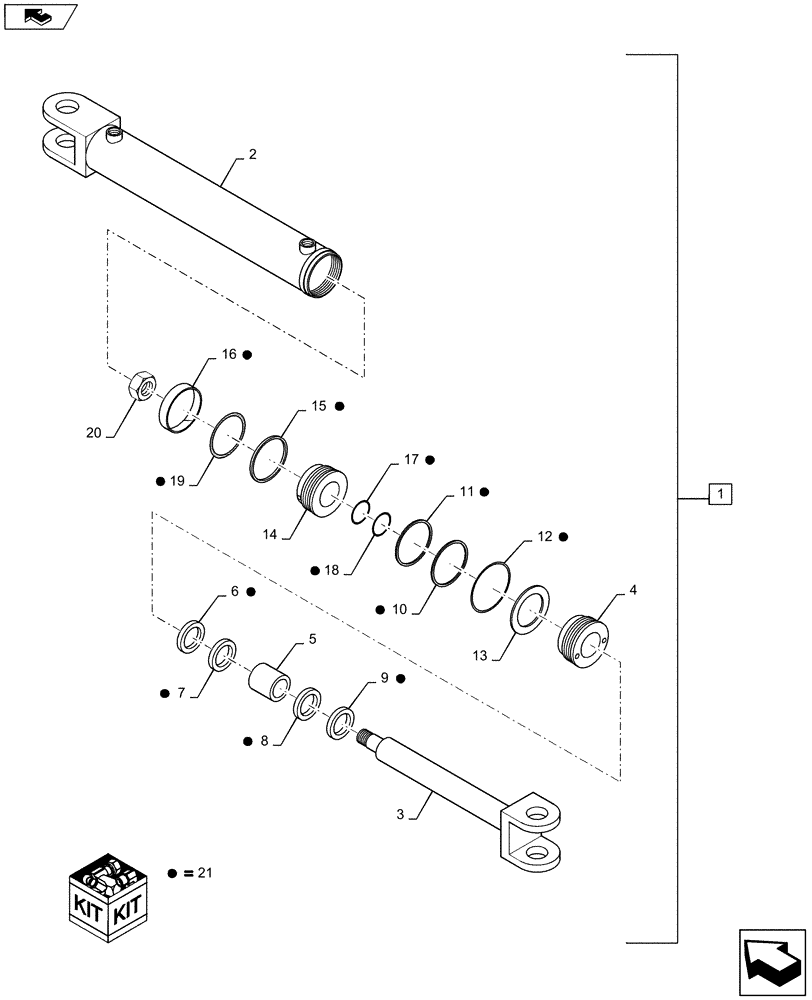

Запчасти Case IH QUADTRAC 450 (41.216.02) - STEERING CYLINDER - STEIGER 500, QUADTRAC 450 & 500 (41) - STEERING

1

87490283

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 526mm Stroke

Steering, Steiger 500, QuadTrac 450 & 500, Incl 2 - 20

1шт.

2

84352408

TUBE

Cylinder

1шт.

3

84352042

ROD

Cylinder

1шт.

4

87378379

COVER

Gland

1шт.

5

87378380

BUSHING

Gland

1шт.

6

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

7

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

8

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

9

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

10

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

11

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

12

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

13

87378378

WASHER

1шт.

14

84352409

PISTON,85mm Bore, 50mm Rod

1шт.

15

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

16

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

17

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

18

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

19

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

20

84352370

NUT

1шт.

21

84353681

SEAL KIT

Steering Cylinder, Incl 6 - 12, 15 - 19

1шт.
