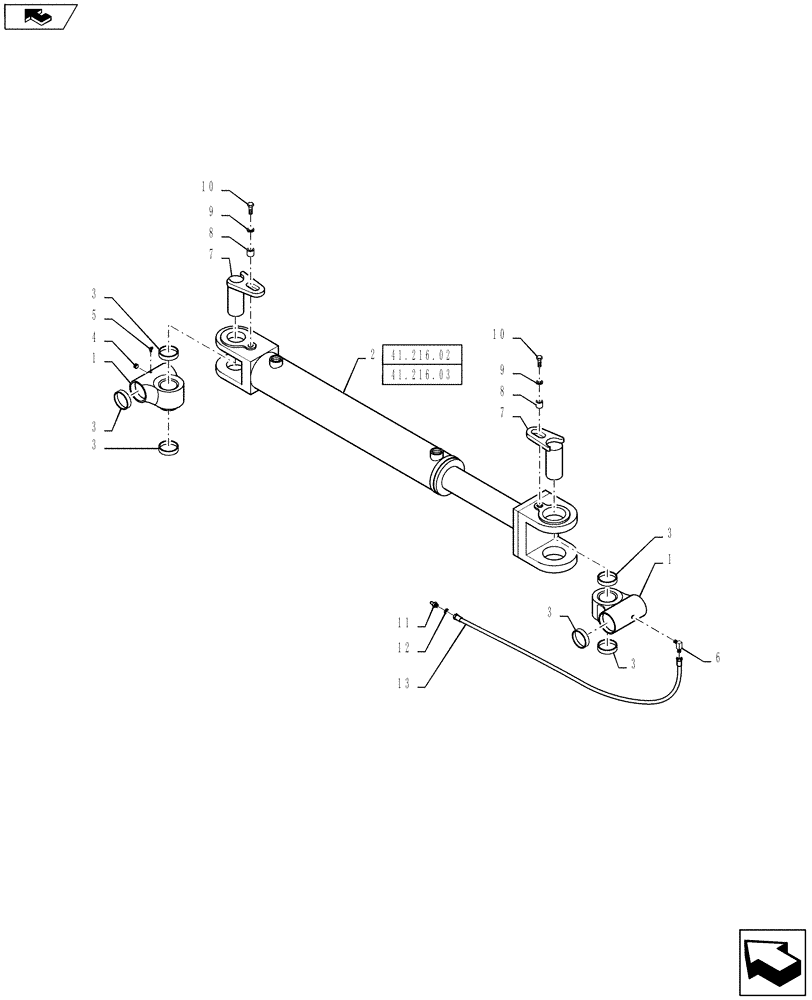

Запчасти Case IH QUADTRAC 450 (41.216.01) - STEERING CYLINDER, ATTACHMENTS (41) - STEERING

1

409685A1

JOINT

Knuckle

2шт.

2

87490283

HYDRAULIC CYLINDER,Double Acting, 50mm Rod, 526mm Stroke

Steering, Steiger 500, QuadTrac 450 & 500

1шт.

2

87705053

CYLINDER,Double Acting, 50mm Rod, 526.7mm Stroke

Steering, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

3

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

Wiper, Rod, 44.4

8шт.

4

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

2шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

6

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

7

70-6013T2

PIN

Flag

2шт.

8

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

22mm OD x 17mm ID x 11mm

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

87563128

LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

M16 X 35, Full, 8.8 ZND

2шт.

11

219-20

LUBE NIPPLE,1/4" - 28

1шт.

12

F53473

LOCK NUT,1/8-27 NPSM

Hex, 1/8 - 27 NPSM

1шт.

13

1339090C1

HOSE

Grease Line

1шт.
