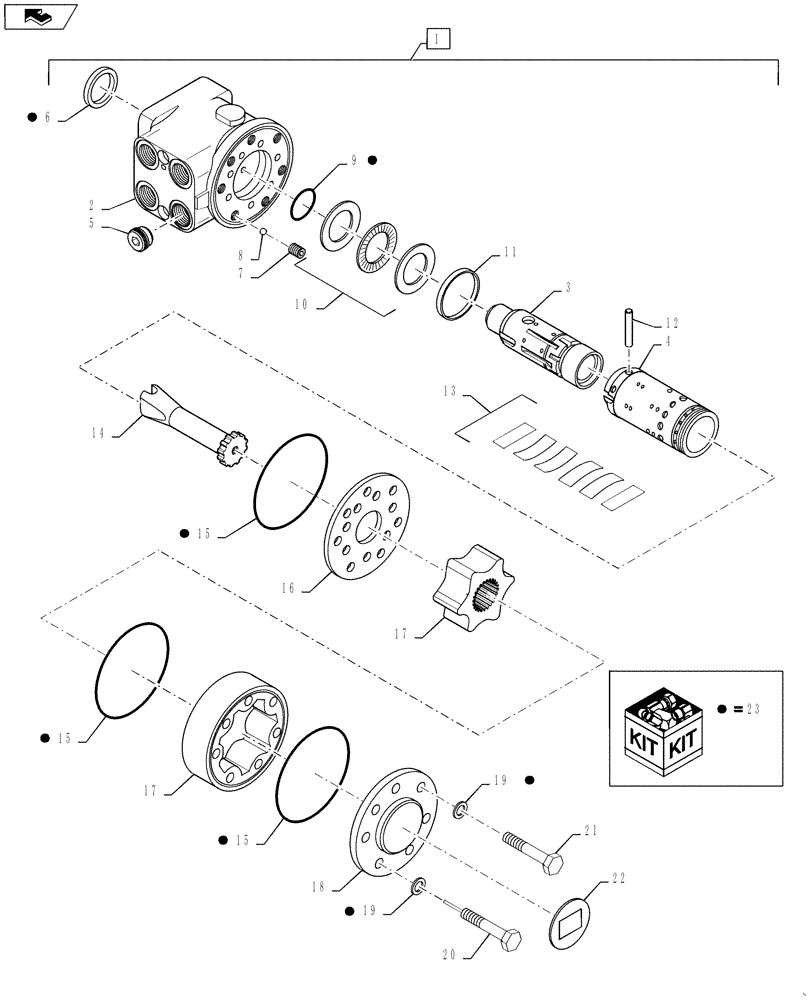

Запчасти Case IH QUADTRAC 450 (41.204.05) - STEERING - CONTROL VALVE (41) - STEERING

1

87667045

STEERING VALVE

Steering, Control Orbital, Incl 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Sleeve, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Check, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Dust Ring, Incl in 23

1шт.

7

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 23

1шт.

10

NSS

NOT SOLD SEPARAT

Bearing Assy., Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Pin, Cross, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Springs, Incl in 1

6шт.

14

NSS

NOT SOLD SEPARAT

Shaft, Cardan, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 23

3шт.

16

NSS

NOT SOLD SEPARAT

Plate, Distributor, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Gear Wheel, Set, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Cover, End, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Washer, Incl in 23

7шт.

20

NSS

NOT SOLD SEPARAT

Screw, with Pin, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

6шт.

22

NSS

NOT SOLD SEPARAT

Plate, Name, Incl in 1

1шт.

23

87345879

SEAL KIT

Steering Valve Seal, Incl 6, 9, 15, 19

1шт.
