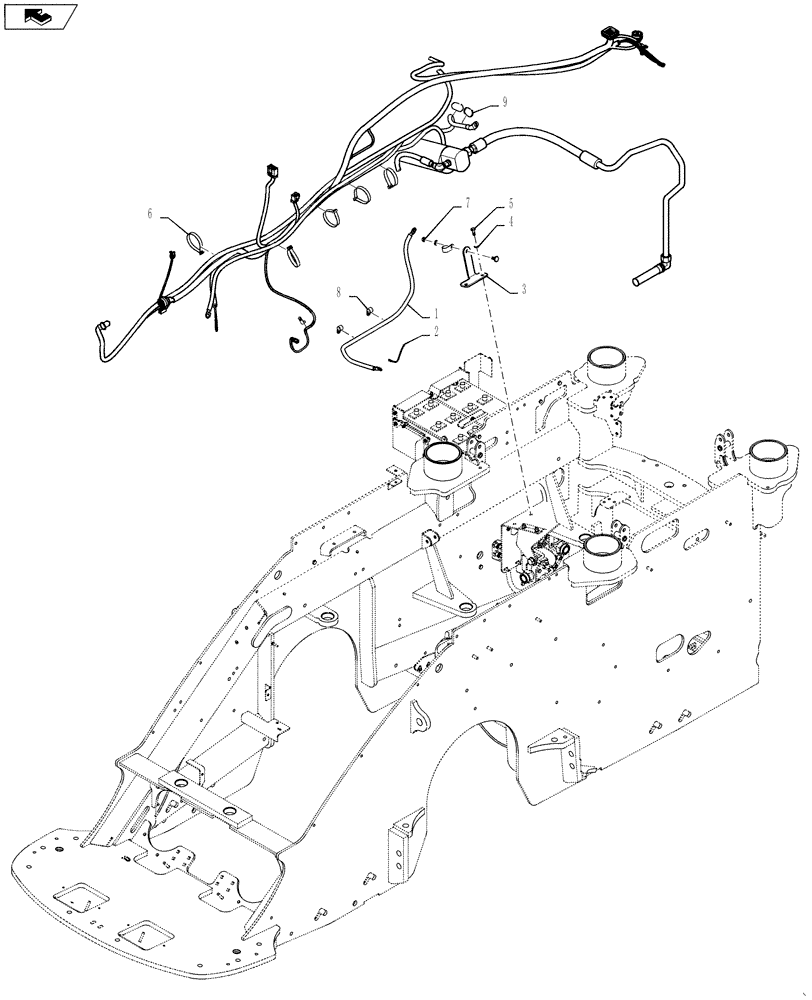

Запчасти Case IH QUADTRAC 450 (41.200.05) - EMERGENCY STEERING PUMP WIRING LAYOUT - EUROPE ONLY (41) - STEERING

1

84410292

ELECTRIC CABLE,1100mm L

Steering Pump Grnd. HHP

1шт.

2

84407338

ELECTRIC CABLE,1900mm L

Steering Pump, B+, 13L

1шт.

3

84410293

BRACKET

Steering Pump Cable

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

84266050

CABLE TIE,384mm L, Polyamide

Strap, Cable Tie

5шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

8

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

3шт.

9

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.
