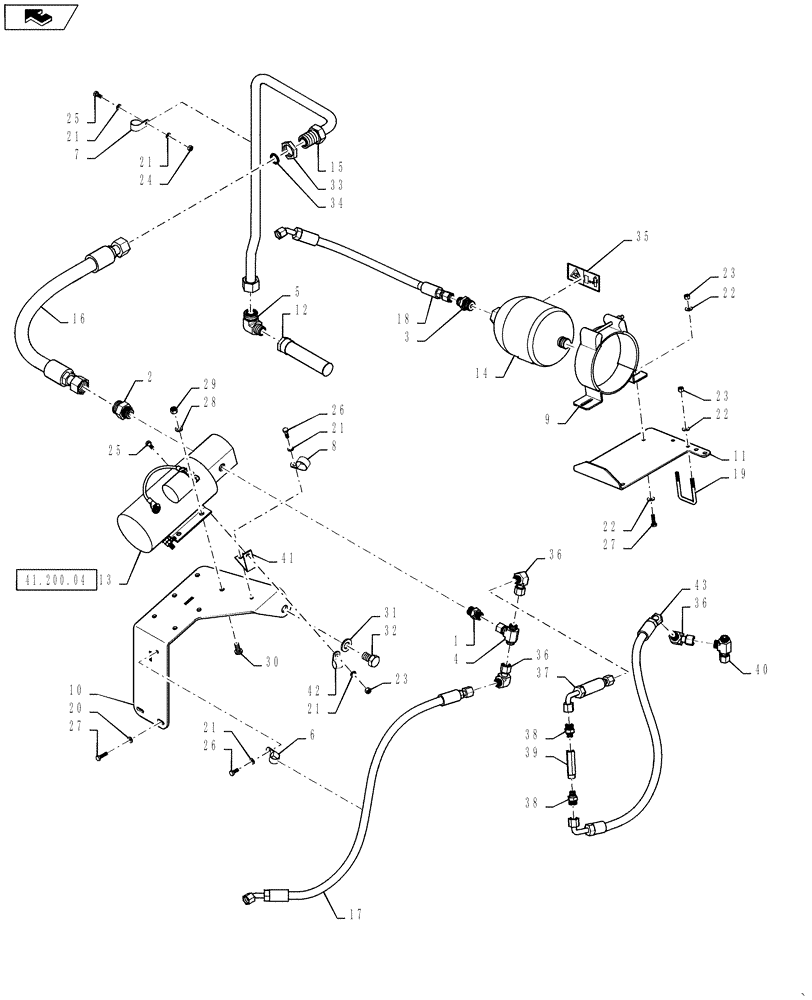

Запчасти Case IH QUADTRAC 450 (41.200.03) - EMERGENCY STEERING PUMP LAYOUT - STEIGER / QUADTRAC 500 - EUROPE ONLY (41) - STEERING

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

, Serial Range: -XXXXXX

1шт.

1

84597075

CHECK VALVE

, Start Serial: XXXXXX

1шт.

1

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Check Valve to Pump

1шт.

1

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Check Valve Face Seal End

1шт.

2

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

1шт.

3

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

4

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

5

84383388

ADAPTER

1.00 In ORFS to .75 IN NPTF 90

1шт.

6

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

7

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

8

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

9

8501315

CLAMP,167mm - 175mm

Accumulator

1шт.

10

84383373

BRACKET

SEC Pump Support - PS4 Transmission

1шт.

10

84485051

BRACKET

SEC Pump Support - PS6 Transmission

1шт.

11

84387839

BRACKET

Accumulator Support

1шт.

12

84574182

FILTER STRAINER

Hydraulic Tank

1шт.

13

87581480

ELECTRIC PUMP

Emergency Steering - See Figure 41.200.04

1шт.

14

84494558

ACCUMULATOR,2.8L

Service Brake

1шт.

15

84387847

HYD TUBE

SEC Pump Suction - Wheeled

1шт.

15

84468894

TUBE

SEC Pump Suction - Quadtrac

1шт.

16

84387846

HYDRAULIC HOSE,25.4mm ID x 762mm L, SAE 100R1

SEC Pump Suction - HP

1шт.

17

84387842

HYDRAULIC HOSE,12.7mm ID x 1210mm L, SAE 100R17

SEC Pump Pressure - Wheeled

1шт.

17

84387843

HYDRAULIC HOSE,12.7mm ID x 1219mm L, SAE 100R17

SEC Pump Pressure - Quadtrac

1шт.

18

84387844

HYDRAULIC HOSE,12.7mm ID x 559mm L, SAE 100R17

Accumulator Pressure - Wheeled

1шт.

18

84387845

HYDRAULIC HOSE

Accumulator pressure - Quadtrac

1шт.

19

396490A1

U-BOLT

M8 X 1.25

2шт.

20

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

27

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

30

87610712

SCREW,Pan HD, M10 x 30mm, Cl 8.8

Pan Hex Socket, M10 x 30mm Full Thread

4шт.

31

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

32

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

1шт.

33

701-908

BHD LOCK NUT,1-7/16" - 12

1шт.

34

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

35

84270891

DECAL

Warning

1шт.

36

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

3шт.

37

84593594

HOSE ASSY.,12.7mm ID x 175mm L, SAE 100R1

Pump Purge H

1шт.

38

9992342

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

2шт.

39

84595280

FLOW CONTROL VALVE

Fuse, Serial Range: -XXXXXX

1шт.

39

47398916

FLOW CONTROL VALVE

Fuse, Start Serial: XXXXXX

1шт.

40

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

41

416512A1

BRACKET

Axle Plate

1шт.

42

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

43

84593596

HOSE ASSY.,12.7mm ID x 990mm L, SAE 100R1

Pump Purge HHP

1шт.
