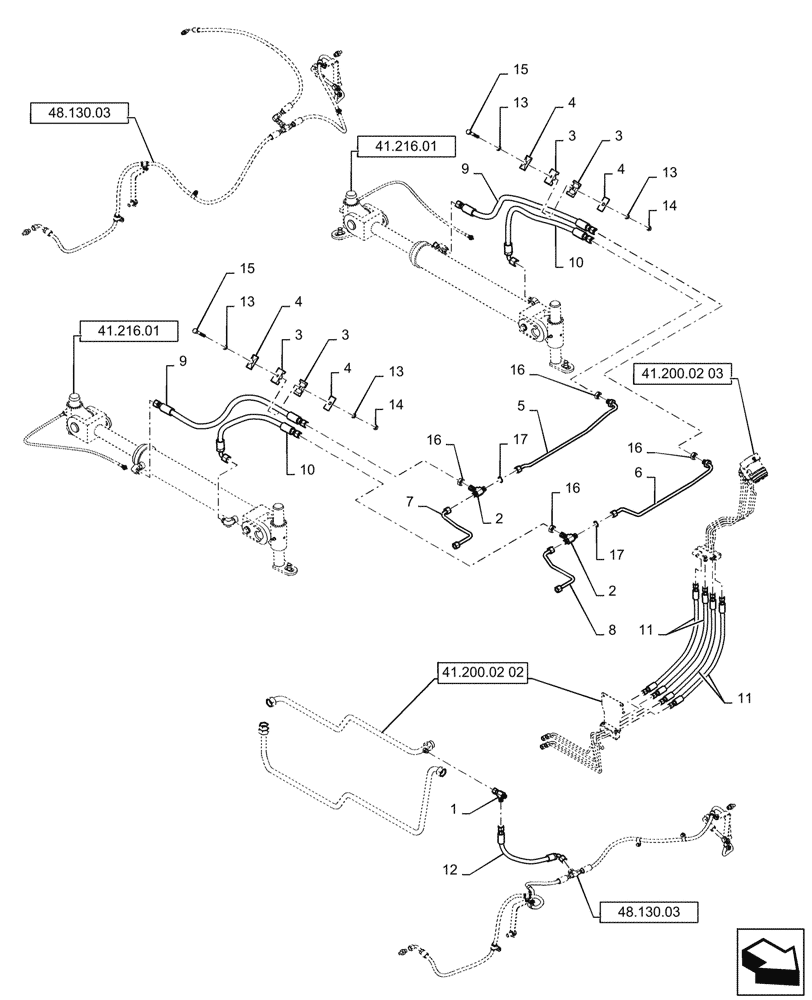

Запчасти Case IH QUADTRAC 450 (41.200.02[01]) - STEERING - HYDRAULIC CONTROL - QUADTRAC (41) - STEERING

1

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

2

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

3

50-2551T1

CLAMP

Tube

4шт.

4

50-2533T1

PLATE

Cover

4шт.

5

84182434

HYD TUBE,12.70 mm OD

Steering Pressure, Right

1шт.

6

84162396

HYD TUBE,12.70 mm OD

Steering Pressure, Left

1шт.

7

84217772

HYD TUBE

Steering, Right

1шт.

8

84340344

TUBE

Steering, Left

1шт.

9

87741808

HOSE ASSY.

Steering Pressure

2шт.

10

367244A1

HOSE,12.7mm ID x 550mm L

Assembly

2шт.

11

84378798

HOSE ASSY.,9.53mm ID x 766mm L, SAE 100R1

Steering Control, HP

4шт.

12

84216985

HOSE ASSY.

Axle Tension Supply, QuadTrac

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

38шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

15

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

16

701-903

NUT,13/16" - 16

4шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.
