Запчасти Case IH QUADTRAC 420 (39.100.AN ) - CONNECTING LINK (39) - FRAMES AND BALLASTING

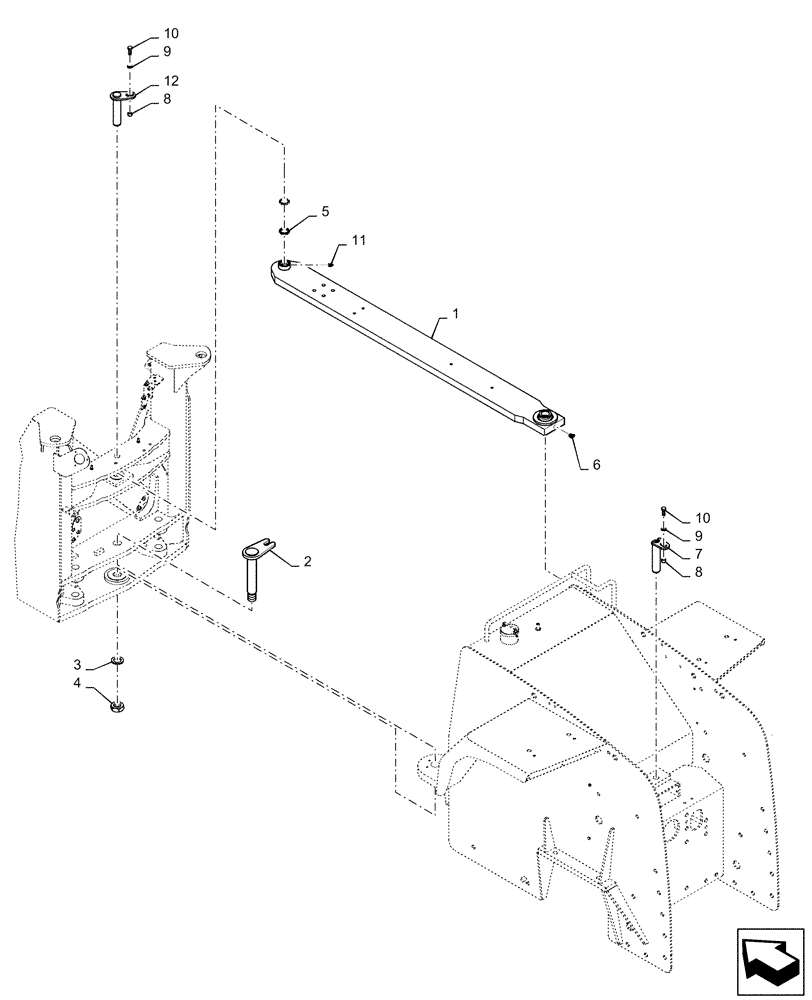

Схема запчастей Case IH QUADTRAC 420 - (39.100.AN ) - CONNECTING LINK (39) - FRAMES AND BALLASTING
4
10
6
3
8
12
11
8
10
9
7
2
9
1
5

Артикул

Название

Примечание

Количество

1

47450666

CONNECTING LINK

Articulation Lock

1шт.

2

87590638

PIN,50.8mm OD x 340mm L

Rear Frame Articulation Joint

1шт.

3

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

1шт.

4

425-1528

JAM NUT,Jam, 1 3/4"-12, G5, Hvy

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

2шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

7

195941A1

PIN,44.37mm OD x 205mm L

1шт.

8

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

9

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

12

87399531

LARGE PIN,44.37mm OD x 210mm L

1шт.

Выбрано товаров: 12
