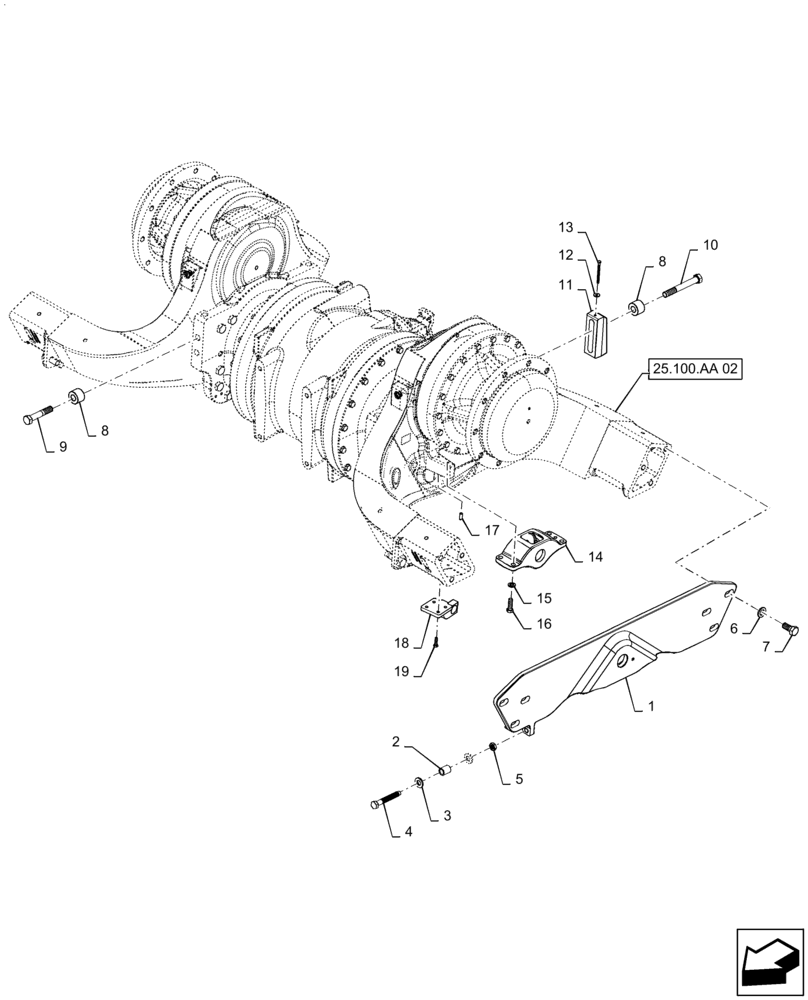

Запчасти Case IH QUADTRAC 420 (25.100.AA[01]) - FRONT AXLE MOUNTING (25) - FRONT AXLE SYSTEM

1

84467437

PLATE

Yoke End

2шт.

2

87439070

SPACER

ID 22.0mm OD 32.0mm

2шт.

3

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

4шт.

4

87439071

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

M20 x 130mm, CL 10.9

2шт.

5

829-4420

THIN NUT,M20 x 2.5, Cl 05

2шт.

6

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

12шт.

7

9780129

BOLT,Hex, M24 x 50mm, Cl 10.9

12шт.

8

87447339

SPACER

ID 26.0mm OD 55.6mm

12шт.

9

827-24130

BOLT,Hex, M24 x 3 x 130mm, Cl 10.9

8шт.

10

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

4шт.

11

87425780

WEDGE

Block

2шт.

12

496-41034

WASHER,.344" x 1" x .098", HDN

2шт.

13

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

14

47627914

SUPPORT

Undercarriage

2шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

16

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

17

837-12030

DOWEL,M12 x 30mm OAL

2шт.

18

84537342

PLATE

Track Adjustment

2шт.

19

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.
