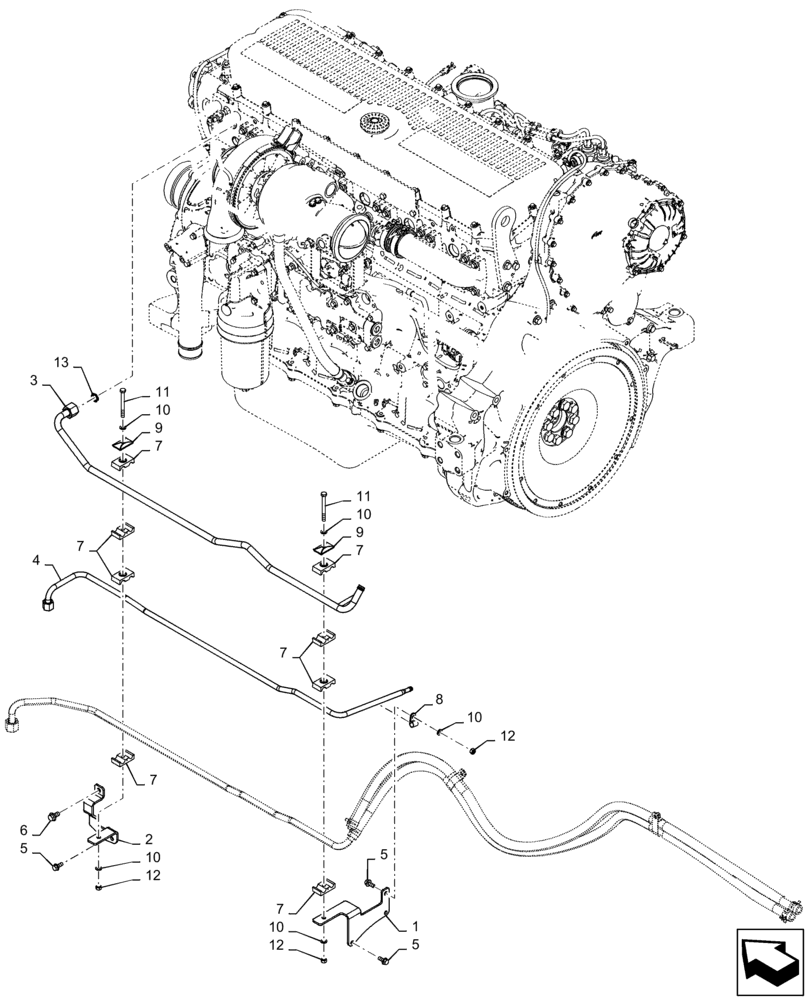

Запчасти Case IH QUADTRAC 370 (10.500.AD[05]) - DEF/ADBLUE™ TANK, HEATER LINES, 370 (10) - ENGINE

1

84586781

BRACKET

Front Tube Support

1шт.

2

84586780

BRACKET

Side Tube Support

1шт.

3

47439438

HEATER TUBE

SCR Heater Supply

1шт.

4

47616367

TUBE

SCR Heater Return

1шт.

5

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

6

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

7

47568093

PIPE CLAMP

Double

4шт.

8

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

9

50-2532T1

PLATE

Cover

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

11

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

12

832-46408

NUT,M8 x 1.25, Cl 8

3шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
