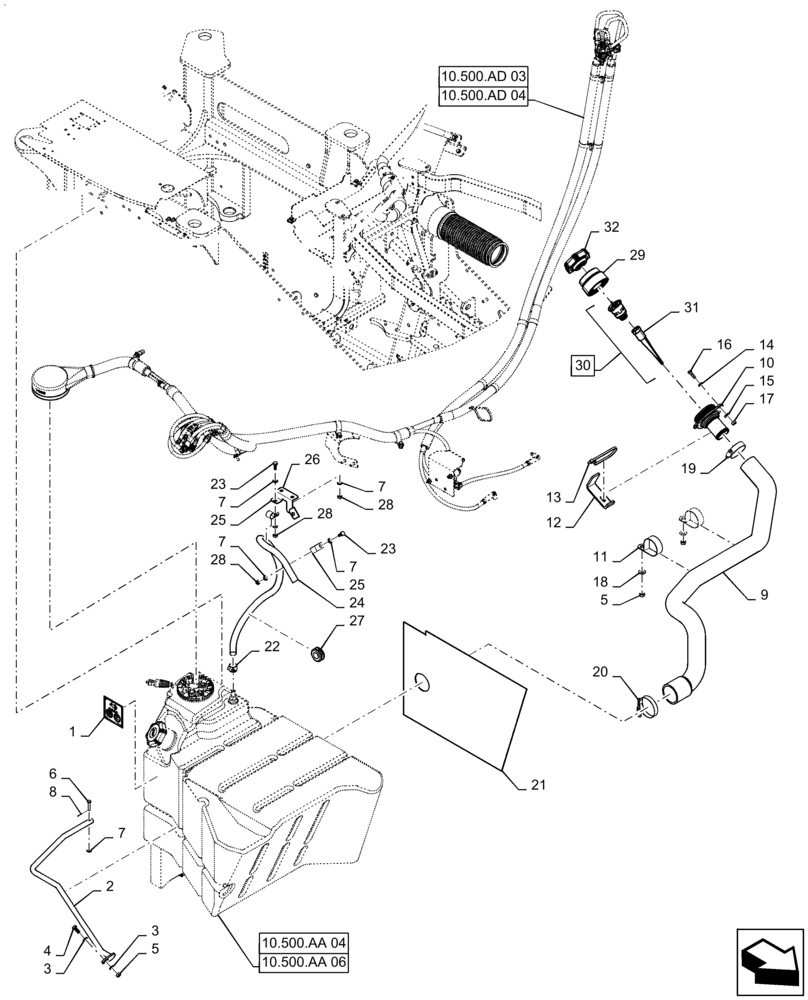

Запчасти Case IH QUADTRAC 370 (10.500.AA[05]) - DEF/ADBLUE TANK LINES, ASN ZFF304814 (10) - ENGINE

1

84284896

DECAL,DEF TANK identification label

DEF Fill

2шт.

2

84599348

SUPPORT

DEF Tank

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

6

728-840

CLEVIS PIN,M8 x 40

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

8

733-1616

COTTER PIN,M1.6 x 16

1шт.

9

47726183

HOSE

DEF Fill

1шт.

10

47381867

ADAPTER

DEF/ADBLUE Filler

1шт.

11

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

2шт.

12

84360092

BRACKET, SUPPORTING

DEF, LH Fill

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

3шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

15

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

16

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

3шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

19

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1шт.

20

L115548

CLAMP,57.15mm - 79.38mm

1шт.

21

84399229

HEAT SHIELD

DEF Tank

1шт.

22

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

24

47398278

HOSE

DEF Tank Breather

1шт.

25

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

26

47357924

BRACKET

DEF Tank Breather

1шт.

27

257279A1

GROMMET

Breather Hose

1шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

29

84236736

NECK FILLER

DEF/ADBLUE

1шт.

30

47657024

FILTER, DEF

100 Micron, Incl 31

1шт.

31

47680524

FILTER, DEF,100 Micron

Screen, 100 Micron

1шт.

32

84206552

FILLER CAP,Male

DEF/ADBLUE

1шт.
