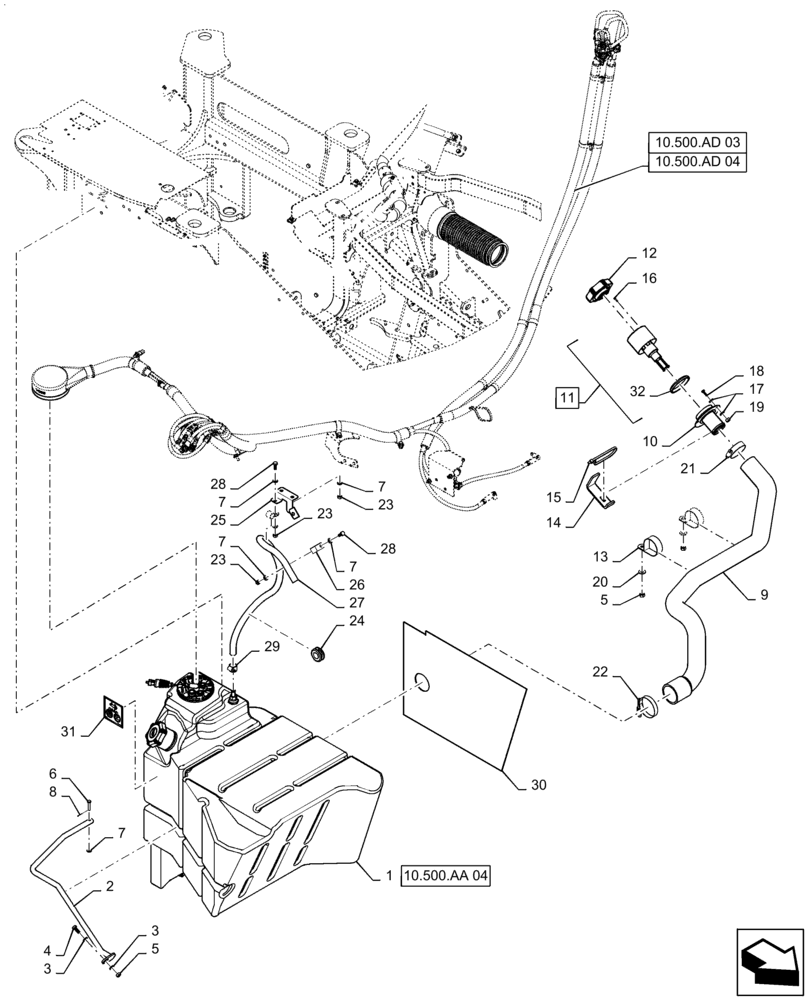

Запчасти Case IH QUADTRAC 370 (10.500.AA[03]) - DEF/ADBLUE TANK LINES, BTW ZEF303001 - ZFF304813 (10) - ENGINE

1

47711890

TANK

DEF, Assembly

1шт.

2

84599348

SUPPORT

DEF Tank

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

6

728-840

CLEVIS PIN,M8 x 40

1шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

8

733-1616

COTTER PIN,M1.6 x 16

1шт.

9

47505187

HOSE

DEF Fill

1шт.

10

84315307

FILLER

DEF Tank

1шт.

11

87483158

NECK FILLER

DEF Tank, Incl 32

1шт.

12

84206552

FILLER CAP,Male

DEF Tank

1шт.

13

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

2шт.

14

84360092

BRACKET, SUPPORTING

DEF, LH Fill

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

1шт.

16

84246766

HEX SOC SCREW,M4 x 12mm, SST

M4 x 12mm

4шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

18

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

19

829-1406

NUT,Hex, M6 x 1, Cl 10.9

3шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

21

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1шт.

22

L115549

CLAMP,69.85mm - 92.08mm

Hose

1шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

24

257279A1

GROMMET

Breather Hose

1шт.

25

47357924

BRACKET

DEF Tank Breather

1шт.

26

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

27

47398278

HOSE

DEF Tank Breather

1шт.

28

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

29

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

30

84399229

HEAT SHIELD

DEF Tank

1шт.

31

84284896

DECAL,DEF TANK identification label

DEF

2шт.

32

84186232

RING

Filler Neck, DEF Tank

1шт.
