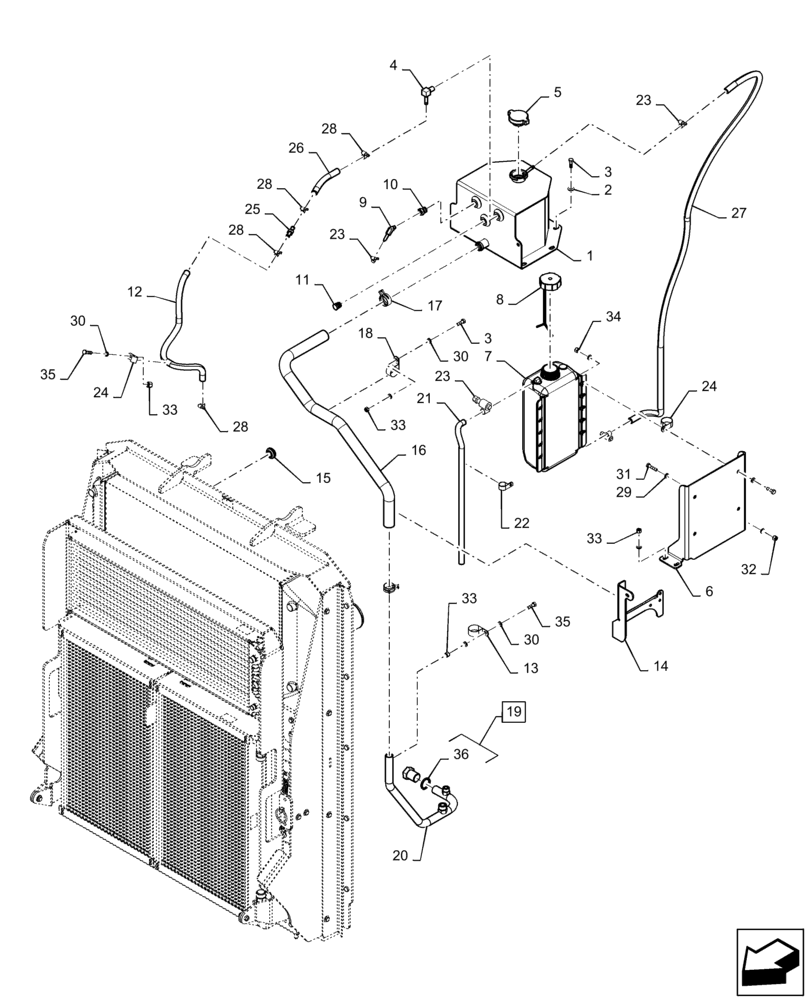

Запчасти Case IH QUADTRAC 370 (10.400.BI[01]) - DEARATION TANK, 370 (10) - ENGINE

1

47591560

TANK

Dearation

1шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

3

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

11шт.

4

87017042

FITTING,90 Degree, 3/8" Hose x 3/8" NPTF Beaded

1шт.

5

A170241

RADIATOR CAP

103 KPA

1шт.

6

84214560

BRACKET, SUPPORTING

Overflow Tank

1шт.

7

87481454

BOTTLE

Tank Recovery, 5 Quart

1шт.

8

238903A1

FILLER CAP

Coolant Recovery Tank

1шт.

9

84285334

FITTING

5/16" Hose Barb x 1/8" NPT

1шт.

10

70901838

REDUCER

3/8" - 18 NPT x 1/8" - 27 NPT

1шт.

11

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

12

31-1208

HOSE,0.38" ID x 12.00"

1шт.

13

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

14

47394285

BRACKET

Surge Tank Return Tube

1шт.

15

361191A1

GROMMET

ISO

1шт.

16

47394276

RADIATOR HOSE

Surge Tank Return

1шт.

17

47613530

HOSE CLAMP,38mm ID

Surge Tank Return Hose

2шт.

18

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

19

84322099

FITTING

1-7/16" - 12 ORFS x M30 x 1.5, Incl 36

1шт.

20

47394282

TUBE

Surge Tank Return

1шт.

21

87713484

HOSE,0.28" ID x 28.00"

Overflow

1шт.

22

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

23

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

5шт.

25

47591521

ORIFICE,3/8" Hose Barb x 3/8" Hose Barb, 1/8" Orifice

3/8" Hose Barb x 1/8" ID

1шт.

26

84124893

FUEL HOSE

Radiator, Bulk, Cut to Length of 138mm

1шт.

27

435458A1

HOSE

Dearation Tank Overflow

1шт.

28

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

21шт.

31

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

33

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

35

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

6шт.

36

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
