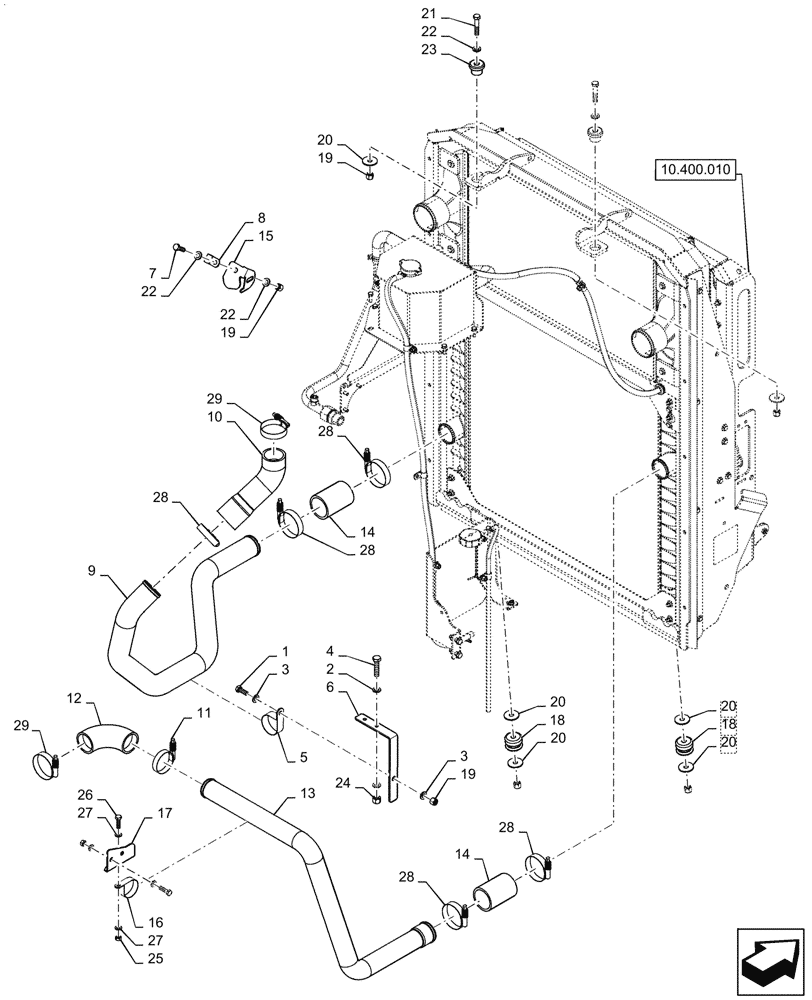

Запчасти Case IH QUADTRAC 370 (10.400.011[02]) - RADIATOR & HOSE (ASN ZGF309207) (10) - ENGINE

1

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

3

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

4

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

5

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

6

47565381

BRACKET

Radiator Support

1шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

1шт.

8

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

9

47563931

TUBE

Lower Radiator

1шт.

10

47883486

RADIATOR HOSE

Lower

1шт.

11

47934774

CLAMP,63.5mm - 71.4mm, Spring

1шт.

12

47883383

RADIATOR HOSE,57.2mm ID

Lower Radiator

1шт.

13

84293680

TUBE

Upper Radiator

1шт.

14

47883431

RADIATOR HOSE,63.5mm ID x 107.5mm L

2шт.

15

84421288

SUPPORT

Oil Dipstick

1шт.

16

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

1шт.

17

84287007

BRACKET, SUPPORTING

Radiator Hose

1шт.

18

435465A1

RUBBER MOUNTING

Isolator

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

6шт.

20

435433A1

WASHER,13.5mm ID x 44.5mm OD x 3mm Thick

6шт.

21

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

23

86012244

MOUNTING PLATE

Isolator

2шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

28

47934773

CLAMP,69.9mm - 77.8mm, Spring

5шт.

29

L115548

CLAMP,57.15mm - 79.38mm

2шт.
