Запчасти Case IH QUADTRAC 370 (10.210.AF[01]) - FUEL LINE, 370 (10) - ENGINE

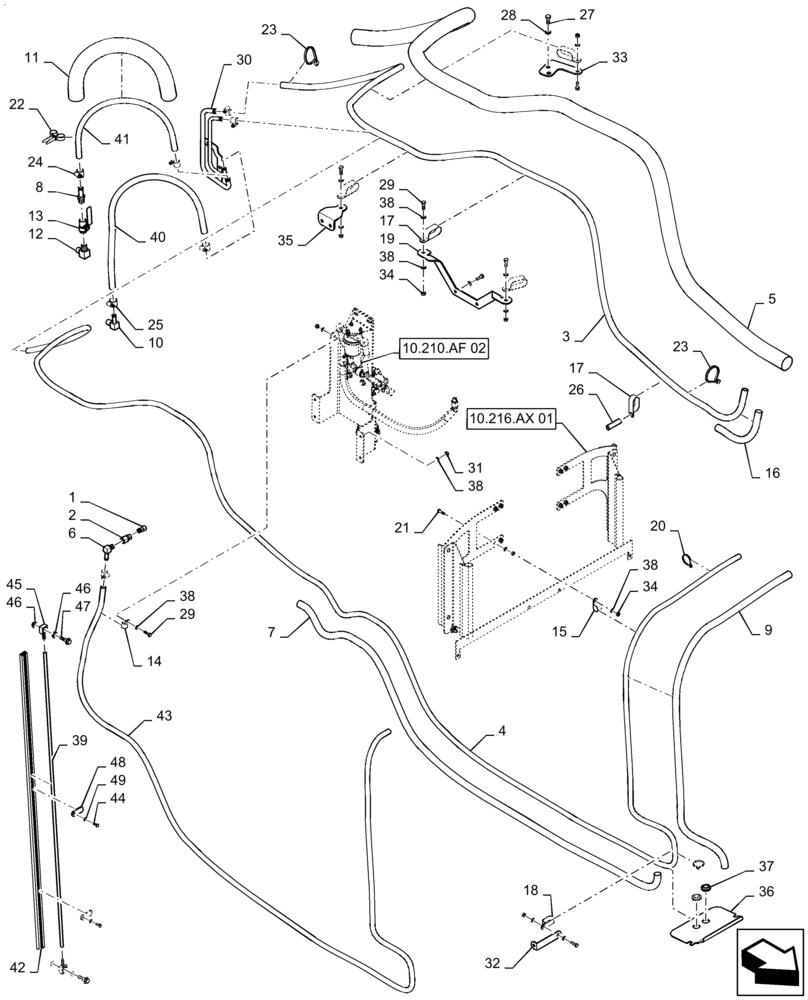

Схема запчастей Case IH QUADTRAC 370 - (10.210.AF[01]) - FUEL LINE, 370 (10) - ENGINE
29
7
35
42
39
5
10
8
49
24
32
44
20
4
19
45
34
37
33
9
14
16
23
10.210.af 02
38
43
48
2
34
38
46
46
17
26
10.216.ax 01
28
25
23
6
30
36
21
29
18
41
3
12
13
38
27
38
11
15
47
17
1
31
38
40
22

Артикул

Название

Примечание

Количество

1

84179286

FITTING

M14 x 1.5 x 9/16" - 18

1шт.

2

86624010

HYD CONNECTOR,37 Degree, Sw, 9/16"-18" x 3/8"-18 NPTF

1шт.

3

31-3064

HOSE

Fuel, 3607mm x 15.9mm

1шт.

4

84394767

FLEXIBLE HOSE

Fuel, 7160mm x 12.7mm

1шт.

5

84394652

PROTECTIVE SLEEVE,46.7mm ID x 3260mm L

Fuel Hose, 3260mm

1шт.

6

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

7

84401012

PROTECTIVE SLEEVE,24mm ID x 2190mm L

Fuel Hose, 2190mm

1шт.

8

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

9

84401013

PROTECTIVE SLEEVE,24mm ID x 1775mm L

Fuel Hose, 1775mm

1шт.

10

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

11

84401009

PROTECTIVE SLEEVE,46.7mm ID x 680mm L

Fuel Hose, 680mm

1шт.

12

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

13

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

Fuel

1шт.

14

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

15

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

16

84401010

PROTECTIVE SLEEVE,24mm ID x 325mm L

Fuel Hose, 325mm

1шт.

17

L111928

CLAMP

Double Hose

6шт.

18

R54363

CLAMP

15/16", Double Hose

3шт.

19

84378990

BRACKET

Fuel Hose Routing Support

1шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

21

84299395

SCREW,Hex Soc, M8 x 1.25 x 30mm, Cl 10.9

Hex Soc, M8 x 30mm, Class 10.9

2шт.

22

327144A1

STRAP,328mm L

Dual Tie

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

3шт.

24

214-1510

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm, W/ Liner

4шт.

25

214-1506

HOSE CLAMP,11.18mm - 19.81mm

4шт.

26

87447010

SPACER

10.75mm x 17.15mm x 65mm

1шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

29

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

10шт.

30

84197933

FUEL TUBE

Hinge Fuel Lines

1шт.

31

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

32

84306773

BRACKET, SUPPORTING

Fuel Line Support, Front

1шт.

33

84306775

BRACKET, SUPPORTING

Fuel Line Support, Rear

1шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

13шт.

35

84379091

BRACKET

Hose Clamp

1шт.

36

84357973

BRACKET, SUPPORTING

Fuel Cooler Hose Seal

1шт.

37

248-2178

GROMMET,3/4" ID x 1 1/16" Groove Dia

2шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

27шт.

39

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

1шт.

40

84365674

FUEL HOSE,15.9mm ID x 990.6mm L

991mm x 15.9mm

1шт.

41

8500164

HOSE

710mm x 12.7mm

1шт.

42

84197976

CHANNEL

Fuel Sight Gauge

1шт.

43

31-3083

HOSE,12.70 mm ID x 3733.8 mm

1шт.

44

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

45

352767A1

FITTING

Sight Gauge

2шт.

46

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

47

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

48

402800A1

BRACKET

Fuel Sight Gauge

2шт.

49

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 49
