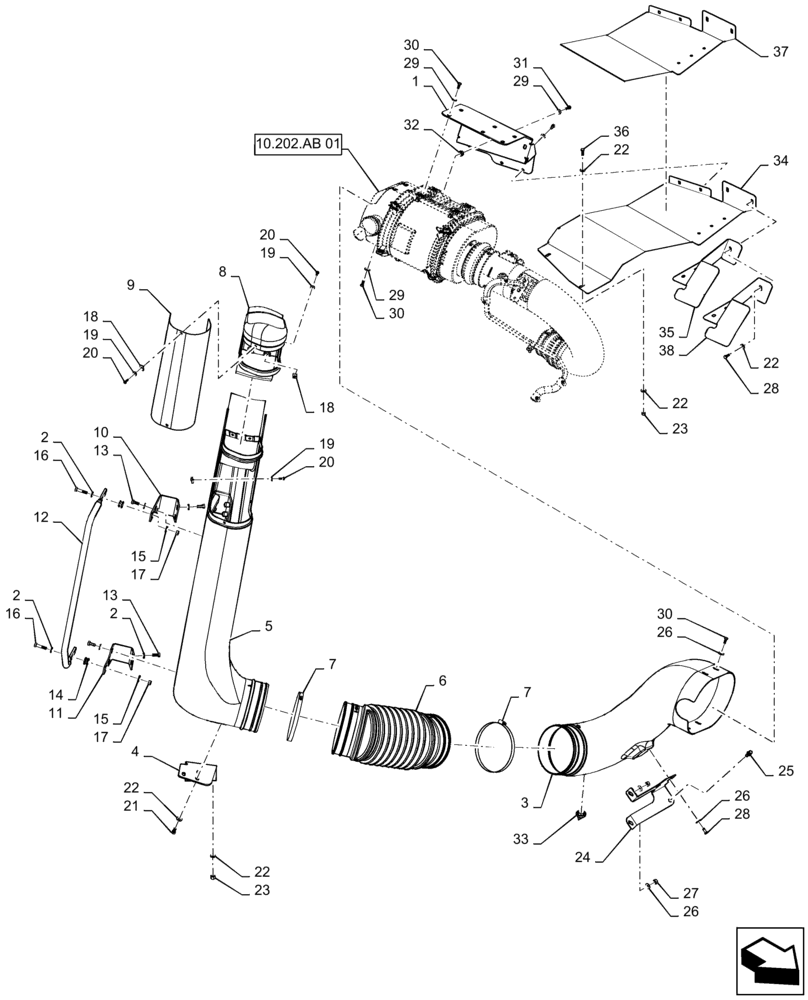

Запчасти Case IH QUADTRAC 370 (10.202.BD[01]) - AIR INTAKE - 370 (10) - ENGINE

1

47575221

BRACKET

Filter Mount

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

13шт.

3

84556250

AIR INTAKE TUBE

Duct

1шт.

4

84580303

BRACKET

Air Duct Support

1шт.

5

84556144

AIR DUCT

Inlet, Serial Range: ZEF300001-ZFF304942

1шт.

5

47745043

AIR DUCT

Inlet, Start Serial: ZFF304943

1шт.

6

47386153

BELLOWS

Air Intake

1шт.

7

84270867

HOSE CLAMP,210mm - 232mm

2шт.

8

84556145

AIR DUCT

Inlet Extension, Serial Range: ZEF300001-ZFF304942

1шт.

8

47713291

AIR DUCT

Inlet Extension, Start Serial: ZFF304943

1шт.

9

47388179

SCREEN

Air Inlet, Serial Range: ZEF300001-ZFF304942

1шт.

9

47712866

SCREEN

Air Inlet, Start Serial: ZFF304943

1шт.

10

84354283

BRACKET

Top Air Duct Mounting

1шт.

11

84354282

BRACKET

Bottom Air Duct Mounting

1шт.

12

47543111

HANDLE

RH Grab, Handrail

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

6шт.

14

434177A1

ISOLATOR

Rubber Mount

4шт.

15

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

16

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

17

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

18

76047274

NUT,M6 x 1

, Serial Range: ZEF300001-ZFF304942

12шт.

18

47780334

NUT,M6

, Start Serial: ZFF304943

12шт.

19

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.

20

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

12шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

22

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

19шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

24

84579389

BRACKET

Support

1шт.

25

408567A1

STUD

Threaded, M8

1шт.

26

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

8шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

28

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

9шт.

30

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

11шт.

31

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

32

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

Standoff

2шт.

33

84272402

VALVE

Vacuator

1шт.

34

47566185

HEAT SHIELD

Air Cleaner

1шт.

35

47566220

HEAT SHIELD

Air Cleaner

1шт.

36

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

7шт.

37

47541394

INSULATING PANEL

Air Cleaner

1шт.

38

47544888

INSULATING PANEL

Air Cleaner

1шт.
