Запчасти Case IH QUADTRAC 370 (90.118.BM[02]) - ELECTRIC MIRROR, BSN ZFF308000 (90) - PLATFORM, CAB, BODYWORK AND DECALS

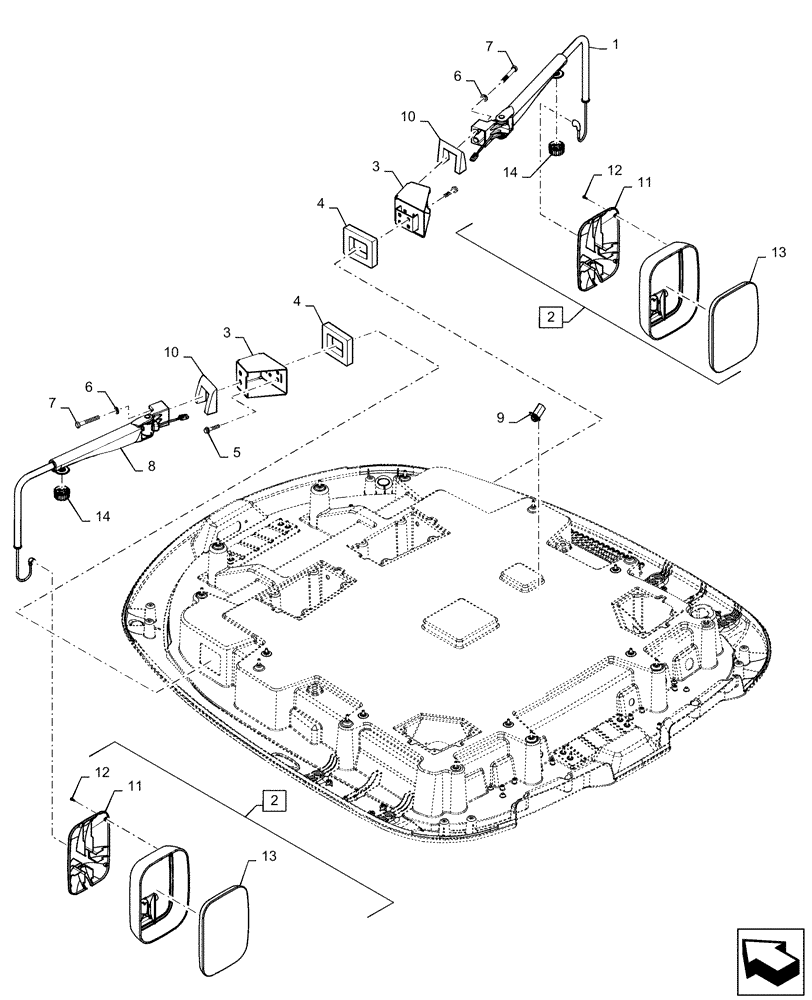

Схема запчастей Case IH QUADTRAC 370 - (90.118.BM[02]) - ELECTRIC MIRROR, BSN ZFF308000 (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
11
2
4
7
2
12
13
9
14
10
8
13
12
14
5
6
6
4
1
3
11
3
10

Артикул

Название

Примечание

Количество

1

87363082

ARM

Mirror, RH, Electric

1шт.

2

87363066

MIRROR,238mm x 328mm

Electric, Incl 11 - 13

2шт.

3

84307672

BRACKET

Mirror

2шт.

4

84401325

FOAM INSULATION

Mirror

2шт.

5

854-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 10.9

8шт.

6

896-19012

WASHER,M12 x 24.5 x 3, HT

4шт.

7

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

8

87363077

ARM

Mirror, LH, Electric

1шт.

9

82037339

SWITCH ASSY

Electric Mirror

1шт.

10

47672782

SEAL PROTECTION

Mirror

2шт.

11

87674626

COVER

Mirror Backing

2шт.

12

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

8шт.

13

87531093

REPLACEMENT MIRROR

Acrylic Lens, Remote

2шт.

14

87365131

KNOB

Mirrior Arm

2шт.

Выбрано товаров: 14
