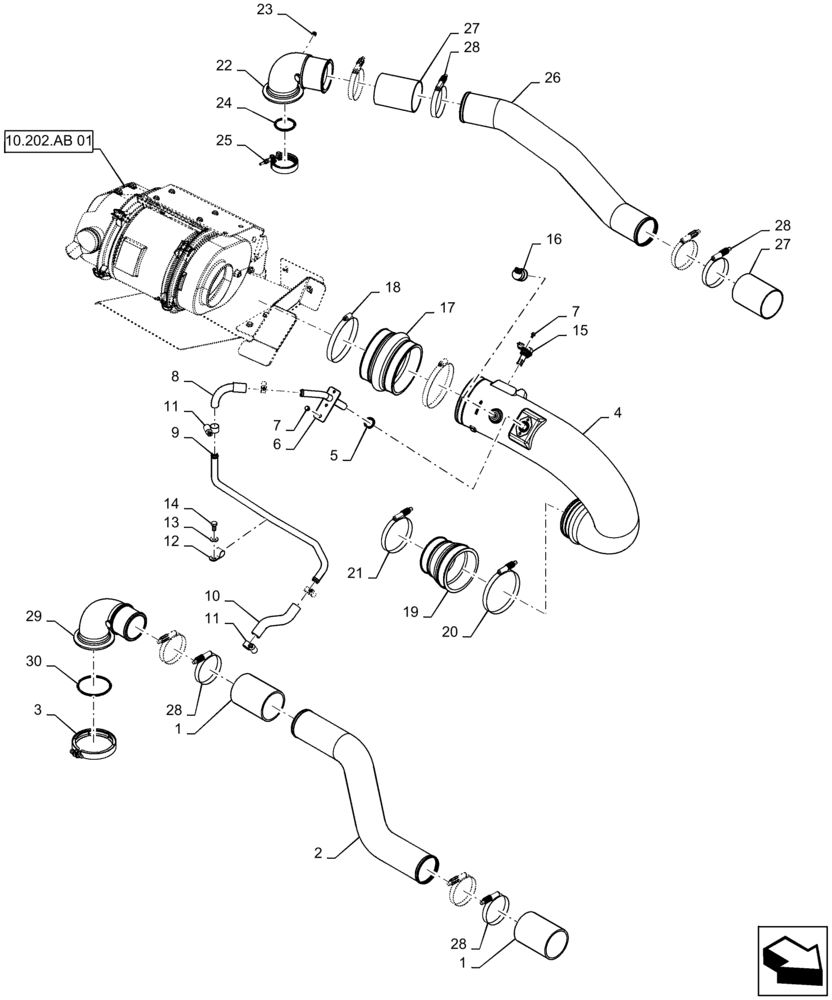

Запчасти Case IH QUADTRAC 370 (10.202.AD[01]) - AIR INTAKE - AIR CLEANER TO ENGINE - 370 (10) - ENGINE

1

84174189

INTAKE AIR HOSE

Cold Side

2шт.

2

47590062

AIR INTAKE TUBE

Charge Air Cooler

1шт.

3

84223170

CLAMP,125mm ID, V-Band

1шт.

4

47507782

AIR INTAKE TUBE

Clean

1шт.

5

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

6

47386623

AIR INTAKE TUBE

CCV Return

1шт.

7

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

4шт.

8

47698848

INTAKE AIR HOSE

Breather

1шт.

9

47371624

AIR INTAKE TUBE

Vacuum

1шт.

10

47371631

HOSE

Engine Breather

1шт.

11

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

4шт.

12

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

1шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

15

87482355

SENSOR

Air

1шт.

16

293797A1

RESTRICTION SWITCH

Air

1шт.

17

84556124

BELLOWS

Rubber

1шт.

18

84319920

HOSE CLAMP,146mm - 168mm

2шт.

19

84426358

AIR INTAKE TUBE,101.6mm ID x 114.3mm L, SAE J200

Turbo Inlet Hose

1шт.

20

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

1шт.

21

L127771

CLAMP,107.95mm - 130.18mm

1шт.

22

J918327

ELBOW

Air Transfer Pipe

1шт.

23

J008465

PLUG

1/8 - 27 NPT

1шт.

24

J883284

O-RING,0.07" Thk x 2.364" ID, -36

Turbo Outlet Seal

1шт.

25

J069053

CLAMP,66.54mm ID

Turbo Outlet

1шт.

26

84556266

AIR INTAKE TUBE

Engine Charge Air

1шт.

27

47435149

AIR HOSE

Charge Air Cooler Intake

2шт.

28

L116820

CLAMP,82.55mm - 104.78mm

8шт.

29

84223171

ELBOW

Air Intake Connection

1шт.

30

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.
