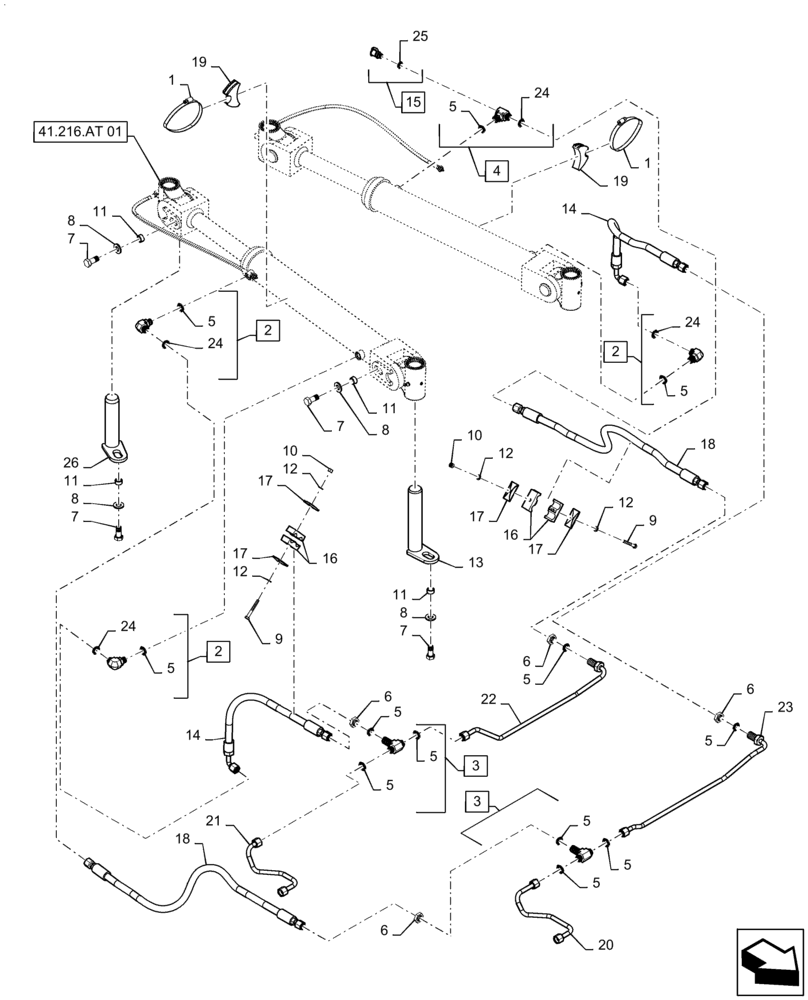

Запчасти Case IH QUADTRAC 370 (41.216.AV[01]) - STEERING CYLINDER HYD. LINE, BSN ZFF308000 (41) - STEERING

1

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

2

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 5, 24

3шт.

3

701-452

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl 5

2шт.

4

364967A1

TEE,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB x M14 x 1.5 Female ORB

13/16"-16 ORFS x M18x1.5 ORB, Incl 5, 24

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

12шт.

6

701-903

NUT,13/16" - 16

4шт.

7

87563128

LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

4шт.

8

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

4шт.

9

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

16.7mm x 22.2mm x 11.2mm

4шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

13

70-6085T2

PIN

Mounting, 1-3/4" x 9-1/2"

2шт.

14

47498735

HOSE ASSY.,12.7mm ID x 550mm L

Steering Control

2шт.

15

178889A1

DIAGNOSTIC COUPLER

Diagnostic, Incl 25

1шт.

16

50-2551T1

CLAMP

Tube

4шт.

17

50-2533T1

PLATE

Cover

4шт.

18

47599809

HOSE

Steering Control

2шт.

19

391133A1

CLAMP

Hose

2шт.

20

84179121

HYD TUBE,12.70 mm OD

Priority, Steering Cylinder, Right

1шт.

21

84179116

HYD TUBE

Priority, Steering Cylinder, Left

1шт.

22

84162396

HYD TUBE,12.70 mm OD

Steering Pressure, Left

1шт.

23

84182434

HYD TUBE,12.70 mm OD

Steering Pressure, Right

1шт.

24

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

4шт.

25

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

70-6076T3

PIN

Mounting, 1-3/4" x 7-1/4"

2шт.
