Запчасти Case IH QUADTRAC 370 (33.110.AT[01]) - PARK BRAKE VALVE (33) - BRAKES & CONTROLS

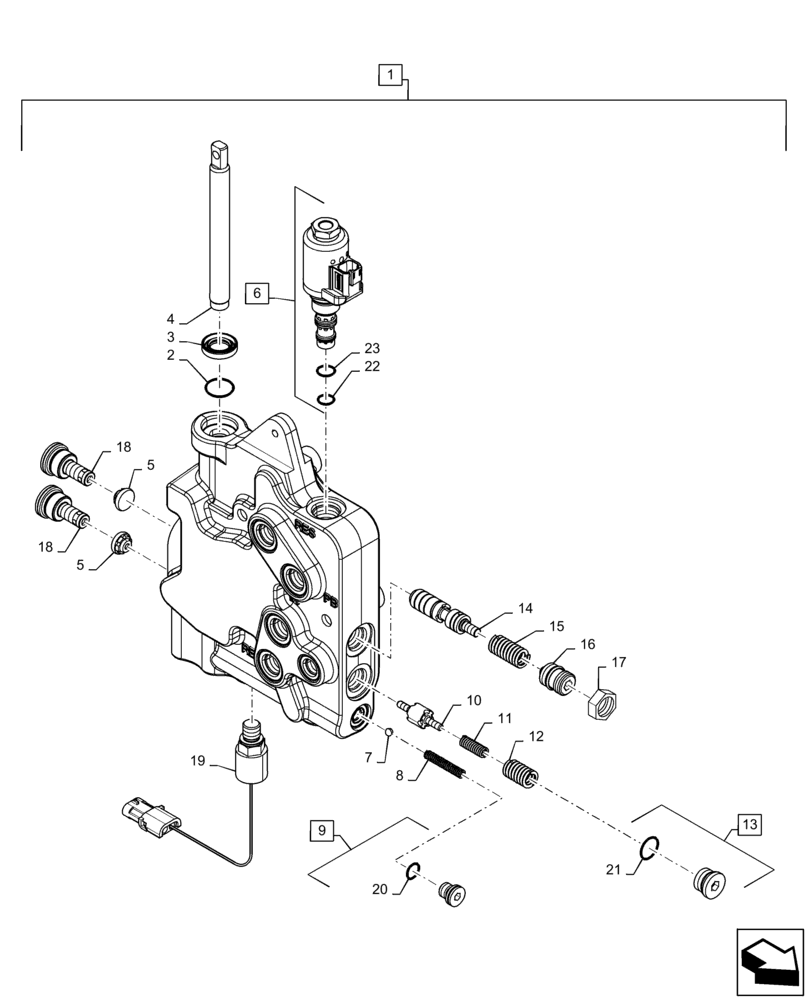

Схема запчастей Case IH QUADTRAC 370 - (33.110.AT[01]) - PARK BRAKE VALVE (33) - BRAKES & CONTROLS
18
11
5
5
18
20
4
2
19
13
21
6
16
10
23
14
3
8
22
12
17
1
9
7
15

Артикул

Название

Примечание

Количество

1

84495761

BRAKE VALVE

Tow Valve Assembly, Incl 2 - 23, Serial Range: ZEF300001-ZFF304661

1шт.

1

47781505

BRAKE VALVE

Tow Valve Assembly, Incl 2 - 23, Start Serial: ZFF304662

1шт.

2

238-5208

O-RING,0.139" Thk x 0.609" ID, -208, Cl 5, 75 Duro

1шт.

3

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

Assembly

1шт.

4

84187368

SPOOL

Manual Pump

1шт.

5

1994615C2

VALVE, CHECK

Cage Assembly

2шт.

6

84596434

SOLENOID

Check, Incl 22, 23

1шт.

7

511-1060

BALL,6mm Dia

1шт.

8

352025A1

SPRING

Brake Overpressure Relief

1шт.

9

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl 20

2шт.

10

84178571

VALVE

Spool Regulator Relief

1шт.

11

84184300

SPRING

Spring Regulator Relief, Inner

1шт.

12

84181936

SPRING

Spring Regulator Relief, Outer

1шт.

13

218-5210

PLUG,Hex, 3/4"-16 ORB

Incl 21

1шт.

14

84602601

SPOOL

Regulator Tow Valve

1шт.

15

84482890

SPRING

24 Bar, Regulator

1шт.

16

47480340

PLUG,3/4" - 16

Adjusting, Assembly

1шт.

17

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

18

84181937

PLUG

Check Retainer

2шт.

19

339529A1

PRESSURE SWITCH

Park Brake, Serial Range: ZEF300001-ZFF304661

1шт.

19

47569377

PRESSURE SWITCH

Park Brake, Start Serial: ZFF304662

1шт.

20

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 25
