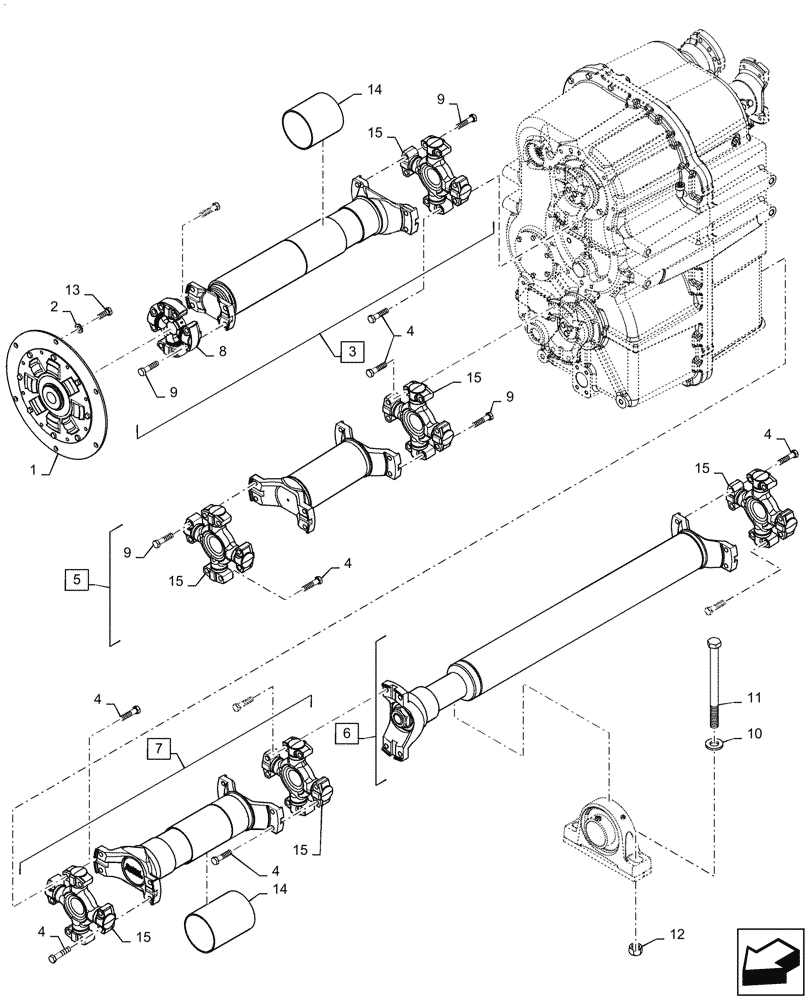

Запчасти Case IH QUADTRAC 370 (23.314.110) - DRIVE SHAFT ASSY, 8C (23) - FOUR WHEEL DRIVE SYSTEM

1

84146340

DAMPER

Torsional

1шт.

1

84146340R

REMAN-DAMPER

Reman Torsional

1шт.

1

84146340C

CORE-DAMPER

Core Return Number

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

3

84202403

DRIVE SHAFT

Engine, Incl 8, 9, 14, 15

1шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

40шт.

5

47404575

DRIVE SHAFT

Front Axle, 8C, Incl 9, 15

1шт.

6

84427185

DRIVE SHAFT

Rear Axle, 8C, Incl 4, 15, Serial Range: -ZGF308725

1шт.

6

47755885

DRIVE SHAFT

, Start Serial: ZGF308726

1шт.

7

84221212

DRIVE SHAFT

Articulation, Incl 4, 14 - 15

1шт.

8

431620A1

U-JOINT SPIDER

8C, Engine

1шт.

9

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

16шт.

10

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

2шт.

11

827-20250

BOLT,Hex, M20 x 2.5 x 250mm, Cl 10.9

2шт.

12

829-1420

NUT,M20, Cl 10

2шт.

13

47379837

BOLT

M12 x 30mm

6шт.

14

404151A1

SEAL,76.2mm ID x 93.98mm OD x 11.68mm Thk

Drive Shaft Wiper

2шт.

15

86000308

UNIVERSAL JOINT

U-Joint Spider, 8C

6шт.
