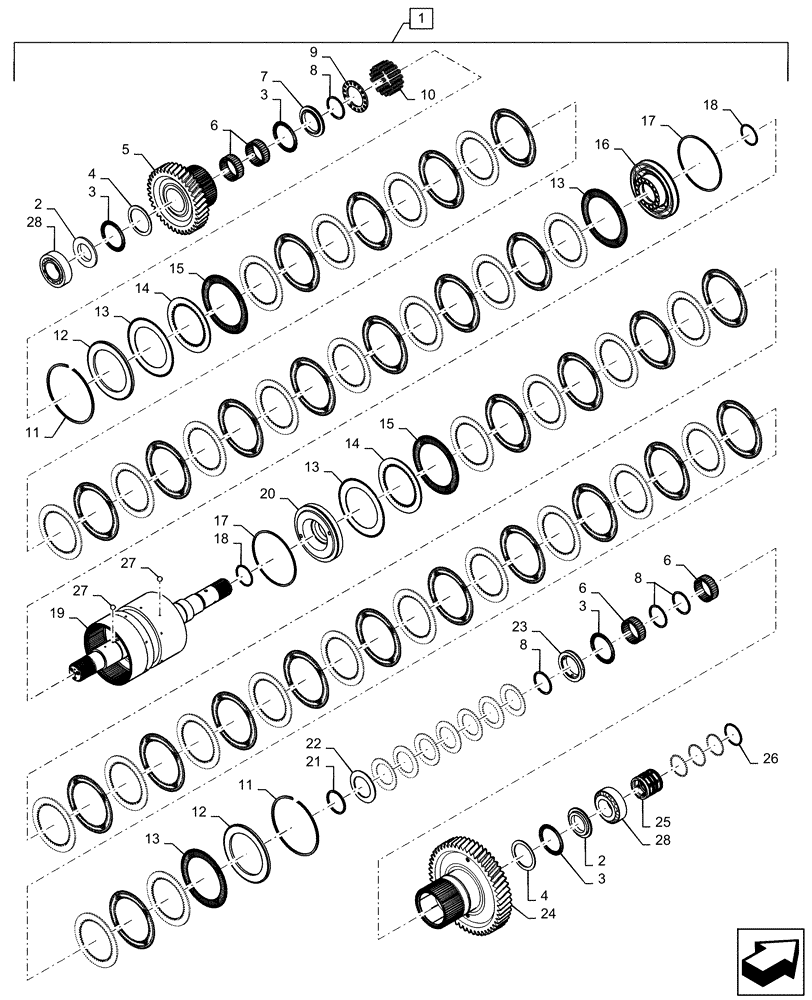

Запчасти Case IH QUADTRAC 370 (21.155.AN[05]) - TRANSMISSION, 5TH SHAFT, PS4, 8C, 370, 420, 470, BSN ZFF308000 (21) - TRANSMISSION

1

87350349

CLUTCH INPUT SHAFT

5th Shaft, 8" Clutch, 8C, Incl 2 - 28

1шт.

2

364831A1

THRUST WASHER

5th Shaft

2шт.

3

84314710

THRUST BEARING

5th Shaft

4шт.

4

358908A1

THRUST WASHER

5th Shaft

2шт.

5

87350355

DRIVEN GEAR

5R

1шт.

6

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

5th Shaft

4шт.

7

87350321

THRUST WASHER

5th Shaft

1шт.

8

S5040S00F

RING

Retaining

4шт.

9

362615A1

PLATE

Spring

1шт.

10

364833A1

SPRING

Return

16шт.

11

428108A1

RING, SNAP

Clutch

2шт.

12

87350360

PLATE

8" Clutch

2шт.

13

370555A1

CLUTCH DISC

Faced

4шт.

14

S4070S00F

CLUTCH DISC,2.4mm Thk

Steel, 2.4mm

27шт.

14

S4110S00F

CLUTCH DISC,2.1mm Thk

Steel, 2.1mm

27шт.

15

370556A1

CLUTCH DISC

Faced, 8" Clutch

25шт.

16

370558A1

PISTON

8" Clutch, Rear

1шт.

17

87431400

RING

Drum

2шт.

18

S4410S00F

RING

Seal

2шт.

19

87350368

SHAFT

5th Drum Assembly

1шт.

20

370562A1

PISTON

8" Clutch, Front

1шт.

21

362611A1

SPACER

5th Shaft

1шт.

22

364826A1

PLATE

Spring

8шт.

23

87350331

THRUST WASHER

5th Shaft

1шт.

24

87350374

DRIVEN GEAR

5F

1шт.

25

370568A1

CARRIER

Piston

1шт.

26

S4150S00F

RING

Seal

4шт.

27

87672304

BALL

Steel

2шт.

28

84314690

ROLLER BEARING

5th Shaft

2шт.
