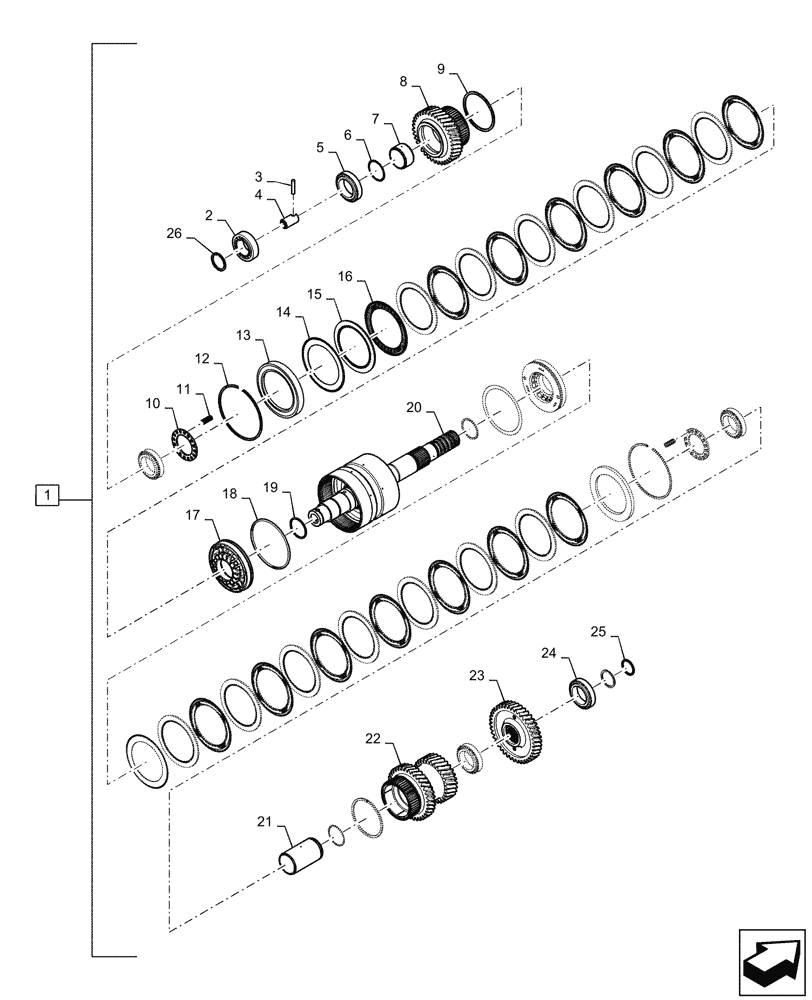

Запчасти Case IH QUADTRAC 370 (21.155.AN[03]) - TRANSMISSION, 2ND SHAFT, PS4, 8C, 370, 420, 470, BSN ZFF308000 (21) - TRANSMISSION

1

87350268

CLUTCH INPUT SHAFT

2nd Shaft, 7" Clutch, 8C, Incl 2 - 26

1шт.

2

428183A1

ROLLER BEARING,55mm ID x 95mm OD x 29.2mm W

Tapered

1шт.

3

428674A1

DOWEL

Coupling

1шт.

4

428673A1

SPLINED COUPLING

Sleeve

1шт.

5

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

2nd Shaft

4шт.

6

352818A1

SHIM,0.15mm Thk

1шт.

6

352819A1

SHIM,0.18mm Thk

1шт.

6

352820A1

SHIM,0.20mm Thk

1шт.

6

352821A1

SHIM,0.25mm Thk

1шт.

6

352822A1

SHIM,0.30mm Thk

1шт.

6

352823A1

SHIM,0.50mm Thk

1шт.

7

87350273

SPACER

2R Bearing

1шт.

8

87350277

GEAR

2R

1шт.

9

87431394

RING

Seal

2шт.

10

87350230

PLATE

Spring Return

2шт.

11

362616A1

SPRING

Return

32шт.

12

352829A1

RING, SNAP

Clutch

2шт.

13

87350231

PLATE

Clutch End

2шт.

14

352831A1

CLUTCH DISC

7" Faced

4шт.

15

S2090S00F

CLUTCH DISC,2.1mm Thk

Steel

9шт.

15

S2080S00F

CLUTCH DISC,2.4mm Thk

Steel

4шт.

16

352832A1

CLUTCH DISC

7" Faced

11шт.

17

87350236

PISTON

7" Clutch

2шт.

18

87431391

RING

Clutch

2шт.

19

S2610S00F

RING

Seal

2шт.

20

87350301

SHAFT

2nd Drum Assembly

1шт.

21

87350305

SPACER

2F Bearing

1шт.

22

87350306

GEAR

2M

1шт.

23

87350307

DRIVEN GEAR

2F

1шт.

24

359206A1

TAPERED BEARING,55mm ID x 100mm OD x 35mm W

2nd Shaft

1шт.

25

S3070S00F

RING

Seal

4шт.

26

352378A1

RING, SNAP

2.5mm

1шт.

26

352394A1

RING, SNAP

2.6mm

1шт.

26

352397A1

RING, SNAP

2.7mm

1шт.

26

352400A1

RING, SNAP

2.8mm

1шт.

26

352815A1

RING, SNAP

2.9mm

1шт.

26

352816A1

RING, SNAP

3.0mm

1шт.
