Запчасти Case IH 9380 QUADTRAC (6-002) - TRANSMISSION MOUNTING, POWER SHIFT TRACTOR (06) - POWER TRAIN

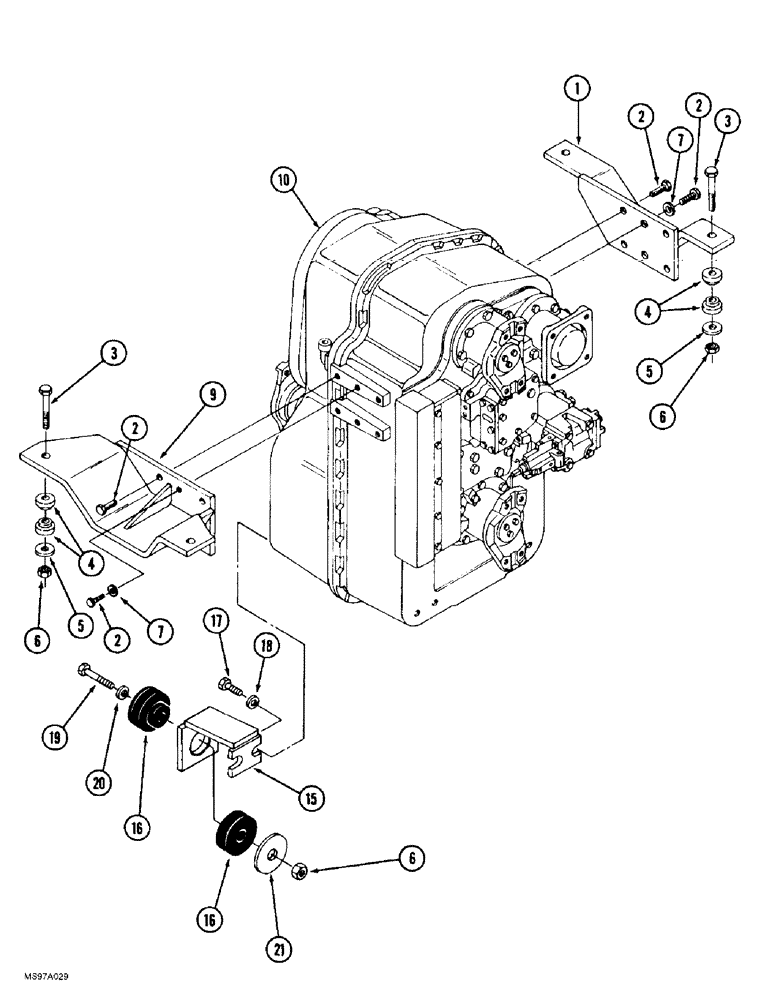

Схема запчастей Case IH 9380 QUADTRAC - (6-002) - TRANSMISSION MOUNTING, POWER SHIFT TRACTOR (06) - POWER TRAIN
15
2
2
5
10
5
7
16
17
4
6
1
2
9
4
16
6
3
6
18
3
21
20
2
19
7

Артикул

Название

Примечание

Количество

1

70-5981T2

SUPPORT

MOUNT - transmission, left-hand

1шт.

2

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

16шт.

3

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

6шт.

4

47-4171

SHOCK ABSORBER

MOUNT - isolator, rubber

12шт.

5

19-5518

WASHER

- flat, 25/32 x 4 x 3/16 inch

6шт.

6

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

6шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

9

70-5983T4

SUPPORT

MOUNT - transmission, right-hand

1шт.

10

90-8452T91

TRANSMISSION

ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-004 - 6-030

1шт.

10

313686A1R

REMAN-TRANSMISSION

Powershift

1шт.

10

313686A1C

CORE-TRANSMISSION

Return Number

1шт.

15

90-7489T3

SUPPORT

MOUNT - transmission, lower

2шт.

16

47-4171

SHOCK ABSORBER

MOUNT - isolator, rubber

4шт.

17

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

19

426-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

2шт.

20

495-11081

WASHER,3/4", SAE

2шт.

21

19-5518

WASHER

- flat, 25/32 x 4 x 3/16 inch

6шт.

Выбрано товаров: 18
