Запчасти Case IH 9380 QUADTRAC (5-016) - STEERING CYLINDER (05) - STEERING

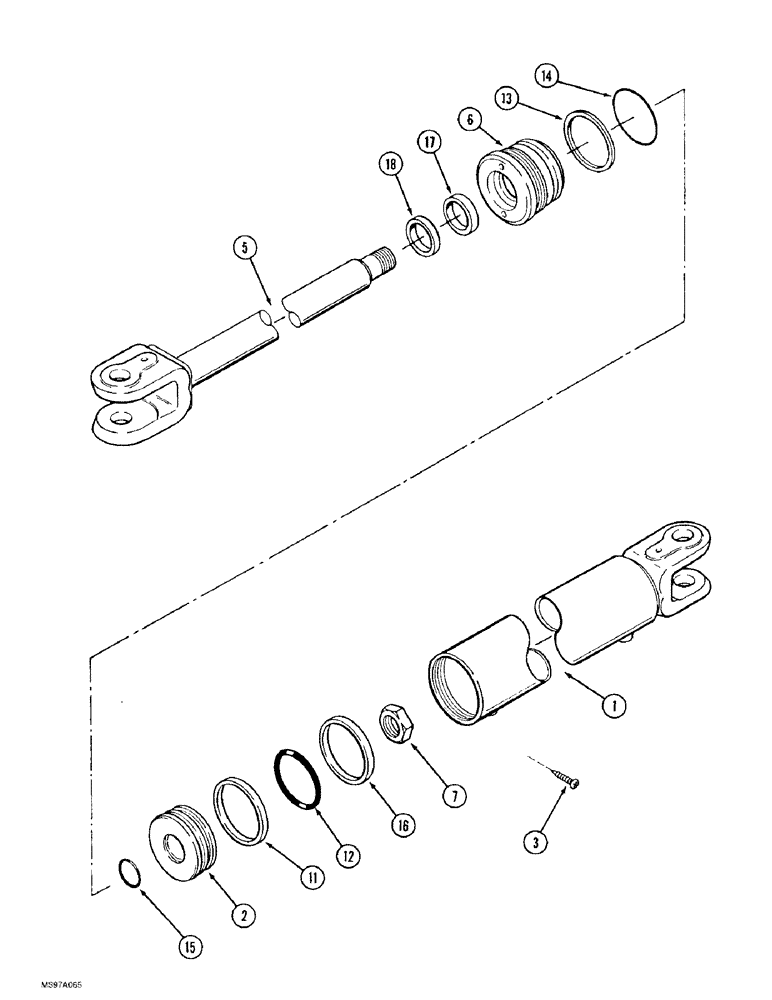

Схема запчастей Case IH 9380 QUADTRAC - (5-016) - STEERING CYLINDER (05) - STEERING
5
13
15
11
16
7
3
14
6
2
1
18
12
17

Артикул

Название

Примечание

Количество

50-3368T93

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 18

1шт.

1

50-3366T2

JACK BODY

TUBE - cylinder

1шт.

2

50-3367T1

JACK PISTON

PISTON - cylinder rod

1шт.

3

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

3шт.

5

50-3363T1

PISTON ROD

ROD - piston, cylinder

1шт.

6

50-3361T2

CYLINDER END CAP

GUIDE - piston rod

1шт.

7

19-5582

LOCK NUT

- hex, self-locking, 1-1/4 inch NF

1шт.

11

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

12

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston

1шт.

13

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

14

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

15

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

16

S109445

RING,82.55mm OD, Ext

- wear, piston

1шт.

17

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

18

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Выбрано товаров: 15
