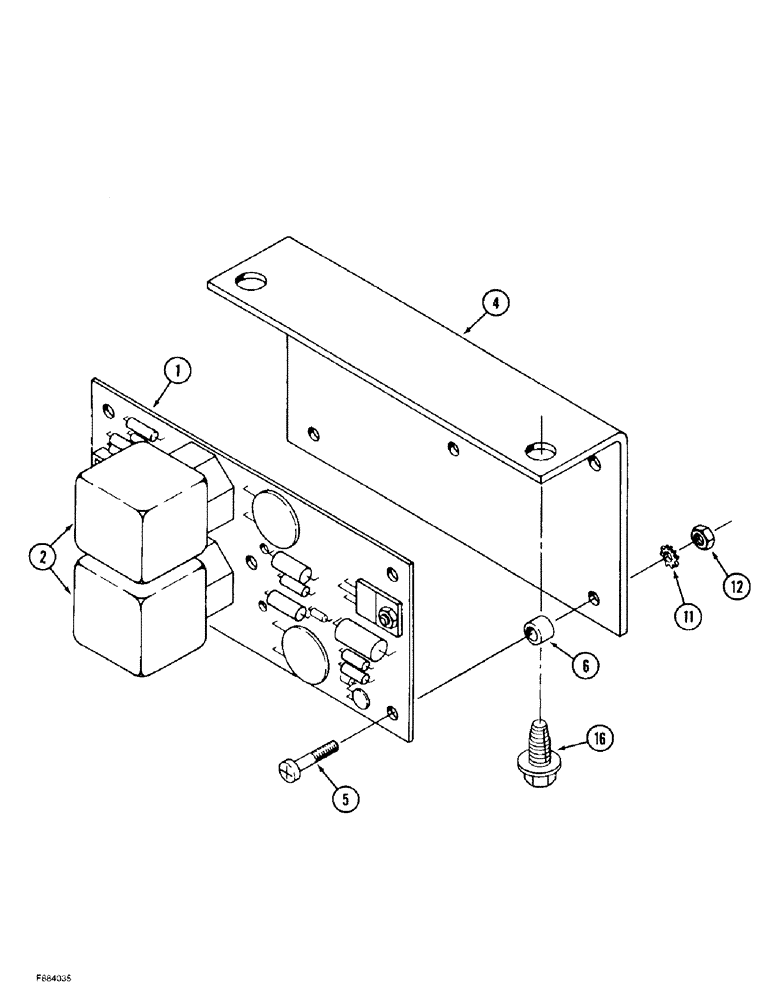

Запчасти Case IH 9380 QUADTRAC (4-066) - TIME BASE FLASHER ASSEMBLY (04) - ELECTRICAL SYSTEMS

1

20-2123T3

BOARD, PRINTED CIRCU

BOARD ASSEMBLY - circuit, Includes: Ref. 2

1шт.

1

20-2123T3R

REMAN-PRINTED CIRCUI

Reman for New PN 20-2123T3

1шт.

1

20-2123T3C

CORE-PRINTED CIRCUIT

Return Number

1шт.

2

1983394C2

RELAY

- mini, 12 volt

2шт.

4

25-1000155

SUPPORT

BRACKET - mounting, circuit board

1шт.

5

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch

5шт.

6

25-1000174

SPACER

- circuit board

5шт.

11

493-41014

LOCK WASHER,Ext, #6

Washer, Ext, #6

5шт.

12

225-14106

NUT,#6-32

5шт.

16

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

2шт.
