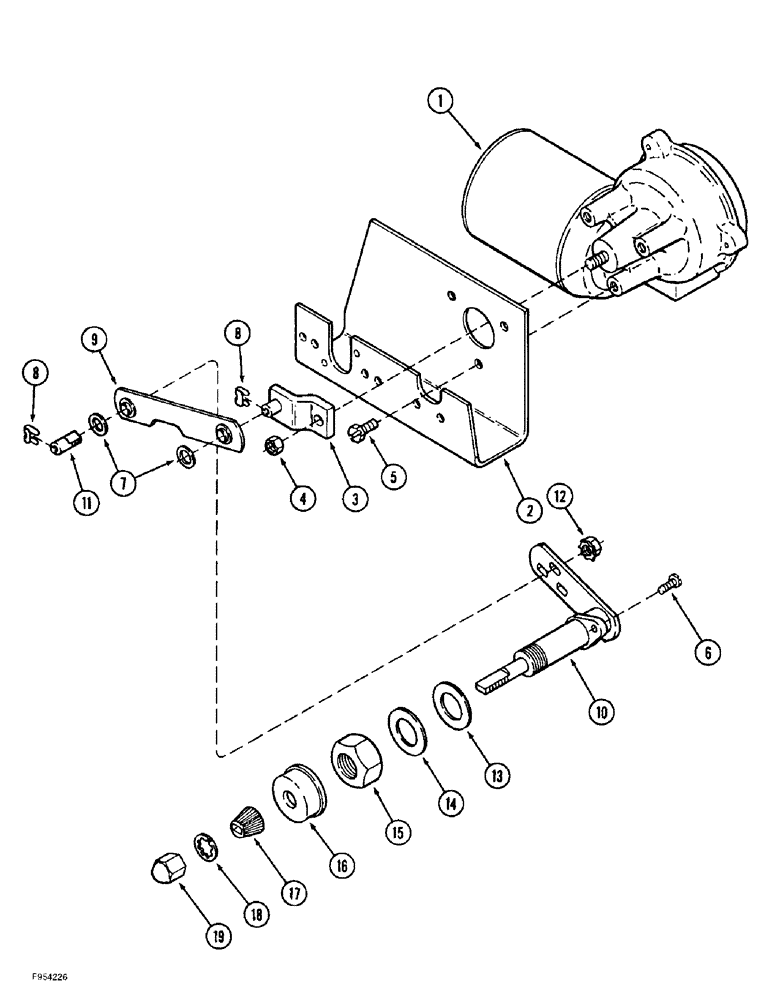

Запчасти Case IH 9380 QUADTRAC (4-058) - WIPER DRIVE ASEMBLY, REAR WINDOW (04) - ELECTRICAL SYSTEMS

60-6578T91

SMALL ELECTRIC MOTOR

DRIVE ASSEMBLY - wiper motor, no longer available, order component parts separately, Includes: Ref. 1 - 19

1шт.

1

60-6586T1

WIPER MOTOR

MOTOR - wiper drive, replaced by 129068A3 kit

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - wiper drive

1шт.

Part of wiper motor kit P/N 129068A3

1шт.

2

D72850

BRACKET

- mounting

1шт.

3

60-6626T1

LEVER

- drive

1шт.

Part of wiper motor kit P/N 129068A3

1шт.

4

143267A1

LOCK NUT

- special, replaces 60-6632T1 nut

1шт.

Part of wiper motor kit P/N 129068A3

1шт.

5

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

3шт.

6

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

2шт.

7

A22431

WASHER

- special

1шт.

8

D71414

CLIP

RETAINER - spring clip

2шт.

9

D71427

LINK,85.85mm L

- connecting

1шт.

10

60-6581T91

DRIVE ASSY.

SHAFT ASSEMBLY - wiper drive pivot, Includes: Ref. 11 - 19

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - link

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

13

D71417

SPECIAL WASHER

WASHER - special, flat

1шт.

14

N6750

WASHER

- flat

1шт.

15

60-3497T1

NUT

- hex, jam

1шт.

16

D71420

CAP

- shaft, rubber

1шт.

17

1267556C1

BUTTON

NUT - knurled drive

1шт.

18

493-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER - internal tooth lock, 3/8 inch

1шт.

19

60-6635T1

NUT

- special

1шт.

129068A3

ELECTRIC MOTOR

KIT - wiper motor, Includes: Ref. 1, 3, 4 and (1) 129067A1 arm, not shown, replaces 60-6586T1 motor, Ref. 1

1шт.
